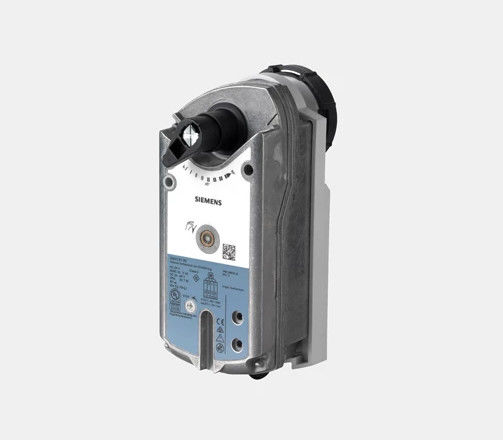

Siemens Rotary Actuator GMA161.9E 7Nm For Ball Valves IP54

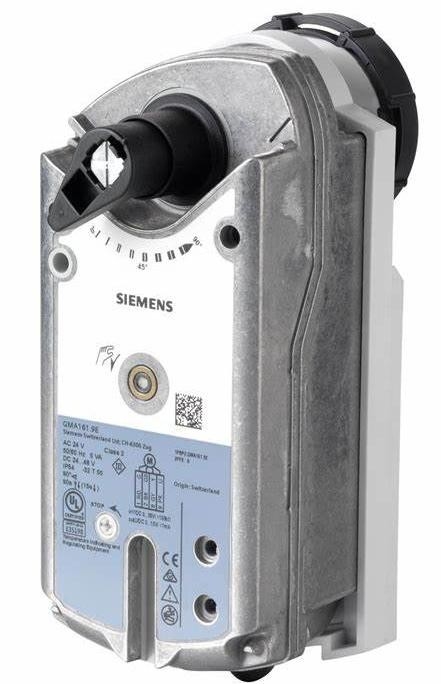

Large Image : Siemens Rotary Actuator GMA161.9E 7Nm For Ball Valves IP54

Product Details:

Place of Origin:	China
Brand Name:	SIEMENS
Certification:	CE
Model Number:	GMA161.9E

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Siemens Rotary Actuator GMA161.9E 7Nm For Ball Valves IP54

Description

Torque:	7 Nm	Positioning Time:	Opening With Motor: 90 S; Closing With Spring: 15 S
Spring Return Function:	Yes	Degree Of Protection:	IP54
Ambient Temperature, Operation:	-32...55 °C	Dimensions (W X H X D):	93 X 112 X 184 Mm
Highlight:	IP54 Siemens Rotary Actuator , Ball Valves Siemens Rotary Actuator , Siemens Rotary Actuator GMA161.9E 7Nm

7Nm IP54 Siemens Building Automation Rotary Actuators For Ball Valves GMA161.9E

Product Specifications

Attribute	Value
Torque	7 Nm
Positioning time	Opening with motor: 90 s; Closing with spring: 15 s
Spring return function	Yes
Degree of protection	IP54
Ambient temperature, operation	-32...55 °C
Dimensions (W x H x D)	93 x 112 x 184 mm

Product Description

Siemens Rotary actuators for ball valves GMA161.9E

Electromotive rotary actuators with spring return for fail-safe function on 2-position, 3-position, and modulating control. Used in heating, ventilation, and air conditioning systems.

Compatible with 2-port and 3-port control ball valves with internally or externally threaded connections (DN15 to DN50)
Suitable for open/close ball valves (2-port) and changeover ball valves (3-port)
Nominal torque: 7 Nm
Operating voltages: AC 24 V / DC 24...48 V (GMA161.9E), AC 24 V / DC 24 V (GMA161.9E/MO), or AC 230 V ~ (GMA321.9E)
Positioning signal: DC 0/2...10 V=
GMA161.9E/MO includes RS-485 for Modbus RTU communication
Prewired with 0.9 m connecting cable

Related Part Numbers

QBM81-5

VAI51.32-16

VXP459.25-6.3

VAI51.32-25

VXP459.32-16

VAI51.40-25

VAI61.25-10

VAI51.40-40

VAI61.25-16

VAI51.50-40

VAI61.32-16

VAI51.50-63

VAI61.32-25

GLA161.9Y/101

VAI61.50-63

GLA141.9Y/101

GMA131.9E

GDA161.9Y/101

GMA161.9E

GDA141.9Y/101

VAI61.40-25

GDB161.9Y/101

VAI61.40-40

GDB141.9Y/101

VAI61.50-40

GLB161.9Y/101

GQD131.9A

GLB141.9Y/101

GQD161.9A

GDB161.9E

VBI61.32-16

VAI51.15-4

VBI61.40-25

VAI51.20-6.3

VBI61.50-40

VAI51.20-10

VBI61.50-63

VAI51.25-10

ASK77.3

VAI51.25-16
