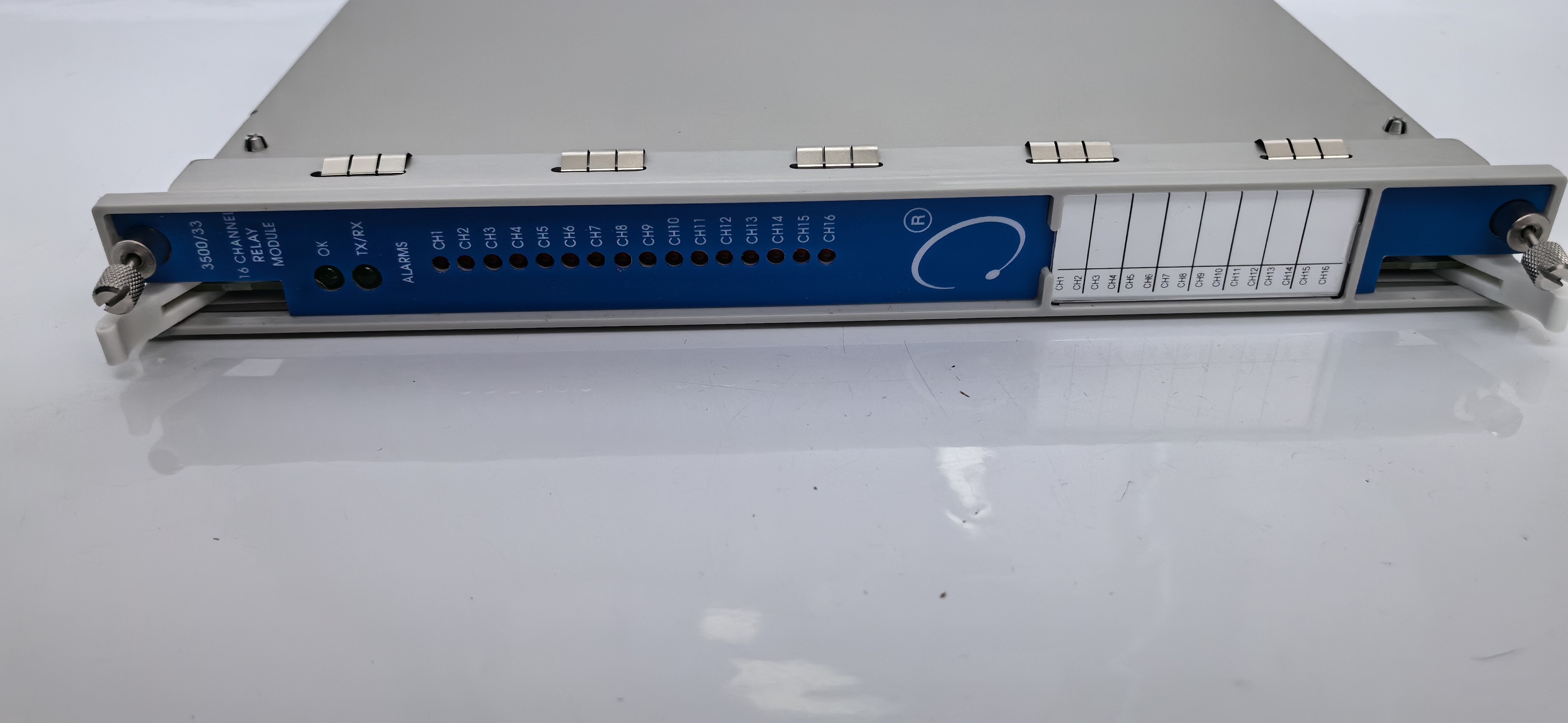

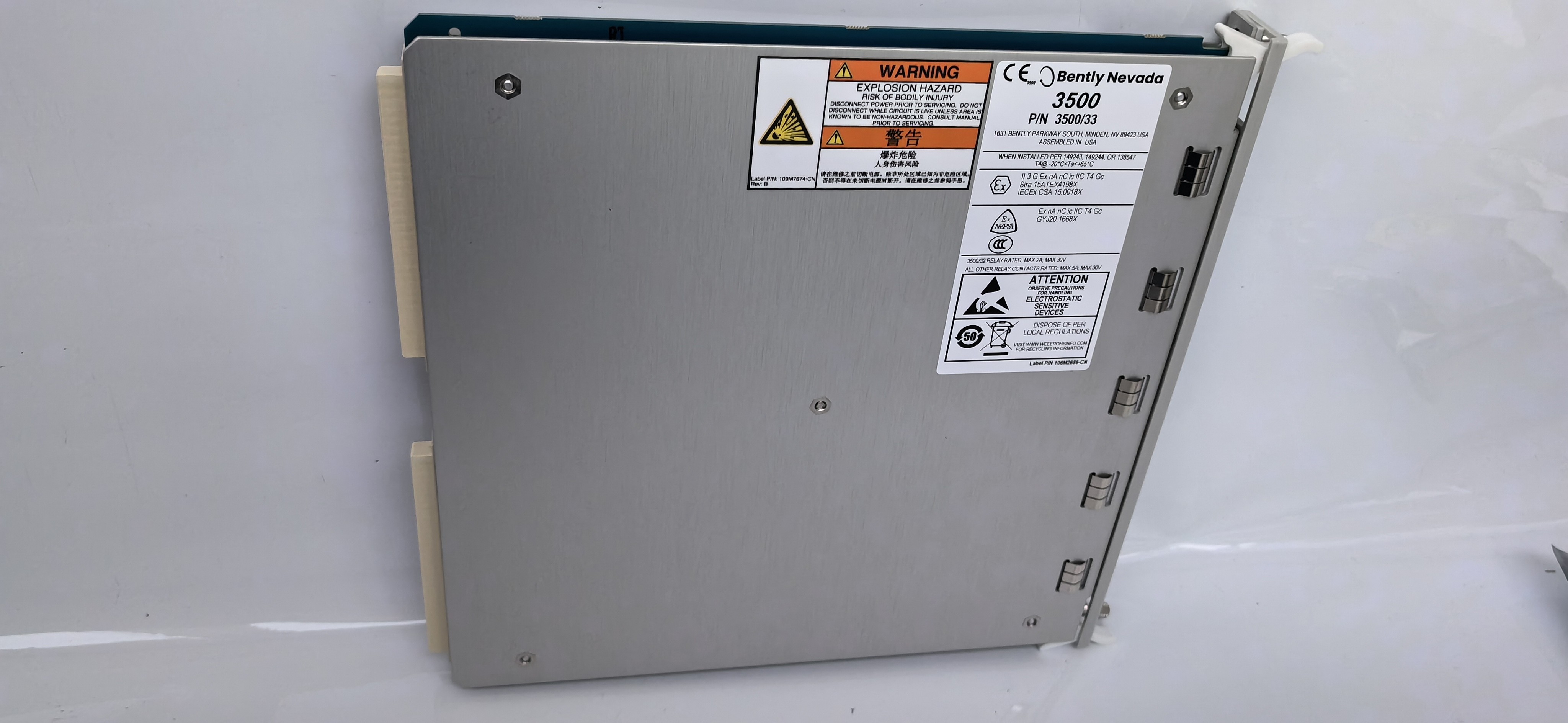

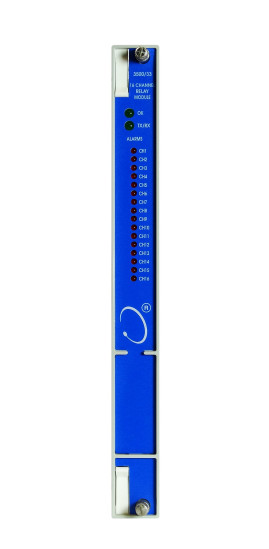

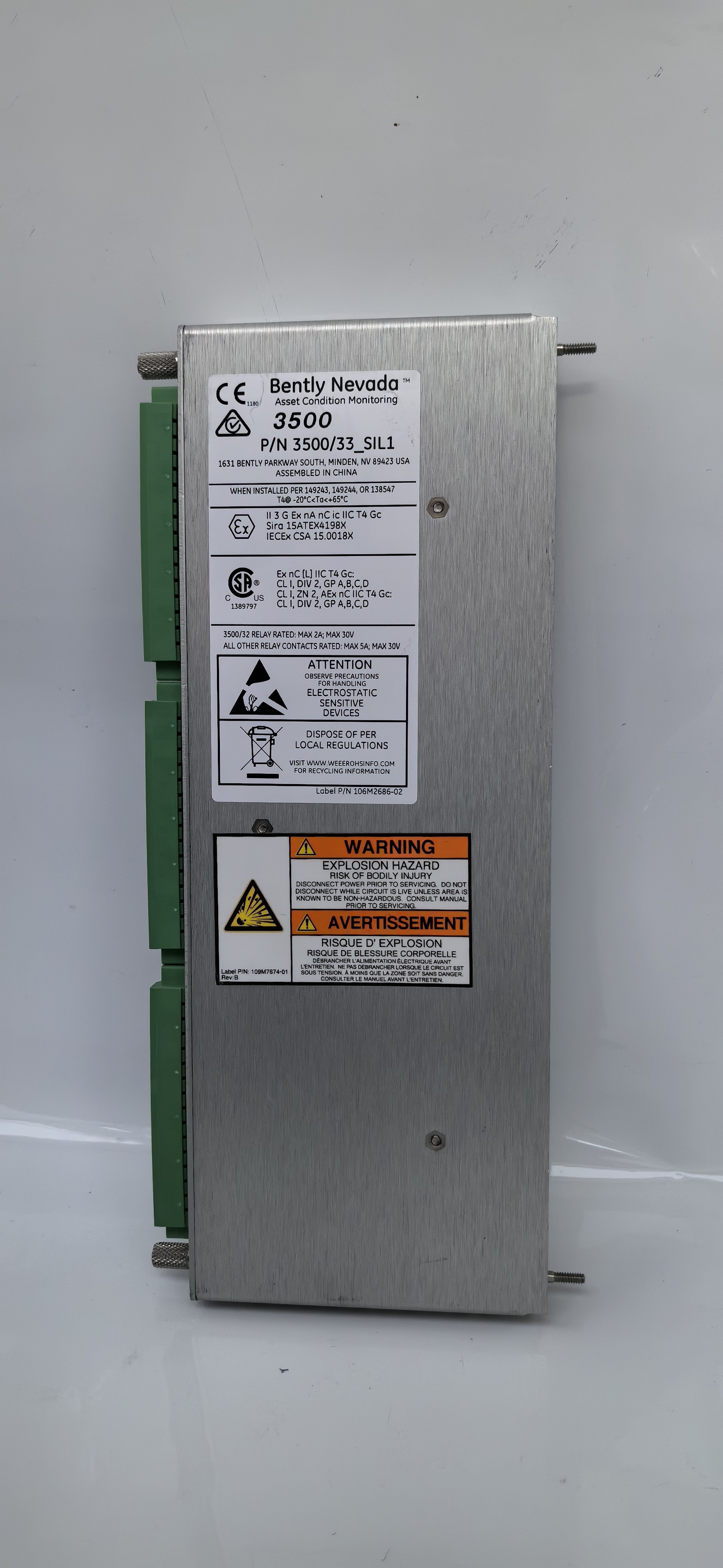

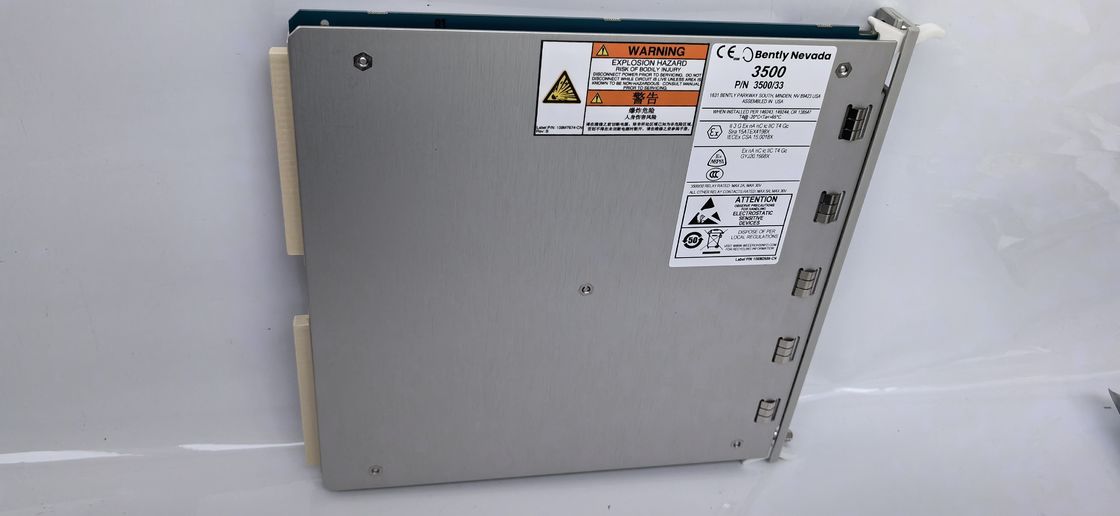

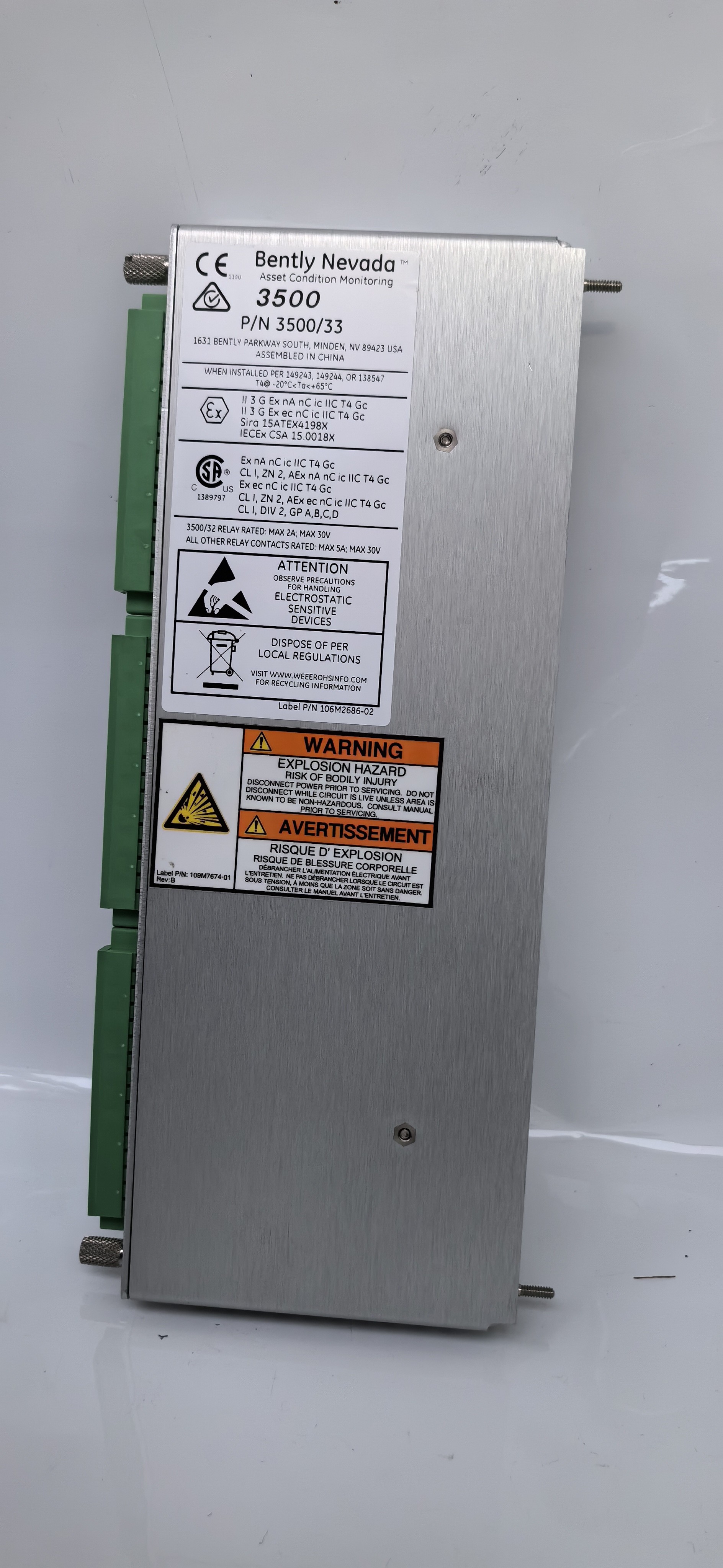

Bently Nevada 3500/33 16 Channel Relay Module 5.8W SPDT 0.7 kg

Large Image : Bently Nevada 3500/33 16 Channel Relay Module 5.8W SPDT 0.7 kg

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CE
Model Number:	3500/33 16-Channel Relay Module 3500/33-01 3500/33-02 3500/33-03 3500/33-04 149986-01 149992-01 149992-02 149992-03/04

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-16weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Bently Nevada 3500/33 16 Channel Relay Module 5.8W SPDT 0.7 kg

Description

Power Consumption:	5.8 Watts Typical	Relay Type:	Single-pole Double-throw (SPDT)
Relay Arc Suppressor:	250 Vrms Installed As Standard	Relay Contact Life:	10,000 Cycles
Dimensions:	241 Mm X 24.4 Mm X 242 Mm	Weight:	0.7 Kg (1.6 Lb)
Main Module:	1 Full-height Front Slot	/O Modulesfront Slot:	1 Full-height Rear Slot
Highlight:	Bently Nevada 16 channel relay module , 3500/33 16 channel relay module , 16 channel relay module 5.8W

5.8w Bently Nevada 3500 System 3500/33-03 3500/33-04 149986-01 16 Channel Relay Module

Product Specifications

Attribute	Value
Power Consumption	5.8 watts typical
Relay Type	Single-pole Double-throw (SPDT)
Relay Arc Suppressor	250 Vrms Installed as standard
Relay Contact Life	10,000 cycles
Dimensions	241 mm x 24.4 mm x 242 mm
Weight	0.7 kg (1.6 lb)
Main Module	1 full-height front slot
I/O Modules	1 full-height rear slot

Product Description

The 3500/33 16-Channel Relay Module is a full-height module that provides 16 relay outputs. You can place any number of 16-channel relay modules in any of the slots to the right of the Transient Data Interface (TDI) Module.

Each output of the 3500/33 16-Channel Relay Module can be independently programmed to perform voting logic. Each relay of the module includes Alarm Drive Logic. Programming for the Alarm Drive Logic uses AND and OR logic and may use the following:

Alarming inputs (alert and danger statuses)
Not-OK status
Individual Measured Variables from any monitor channel or any combination of monitor channels in the rack

Ordering Information

3500/33 AA-BB

A: Output Module
01	16-Channel Relay Output Module
02	16-Channel Failsafe Relay Output Module
03	Low Current 16-Channel Relay Output Module
04	Low Current 16-Channel Failsafe Relay Output Module
B: Hazardous Area Approval Option
00	None
01	cNRTLus (Class 1, Division 2)
02	ATEX / IECEx / CSA (Class 1, Zone 2)

Spare Parts

149986-01	Spare 16-Channel Relay Control Module
149992-01	Spare 16-Channel Relay Output Module
149992-02	Spare 16-Channel Failsafe Relay Output Module
149992-03	Spare 16-Channel Low Current Relay Output Module
149992-04	Spare 16-Channel Low Current Failsafe Relay Output Module
04425545	Grounding Wrist Strap (single use)
162291	16-Channel Relay Module User Guide
00580453	Connector Header Internal Termination 16-position Green
166M2381	Connector Header Push-in-Spring Type (Alternative for PN 00580453)
