P+F K-LB-1.30G SIL 3 Surge Protection Barrier 24V DC 2-Channel

P+F K-LB-1.30G SIL 3 Surge Protection Barrier 24V DC 2-Channel
P+F K-LB-1.30G SIL 3 Surge Protection Barrier 24V DC 2-Channel P+F K-LB-1.30G SIL 3 Surge Protection Barrier 24V DC 2-Channel P+F K-LB-1.30G SIL 3 Surge Protection Barrier 24V DC 2-Channel P+F K-LB-1.30G SIL 3 Surge Protection Barrier 24V DC 2-Channel

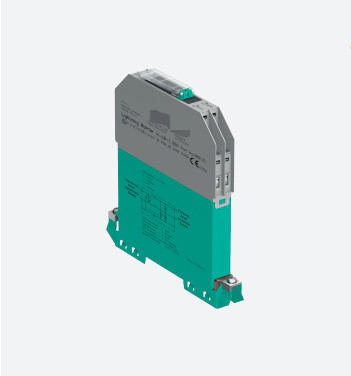

Large Image :  P+F K-LB-1.30G SIL 3 Surge Protection Barrier 24V DC 2-Channel

Product Details:
Place of Origin: Germany
Brand Name: P+F
Certification: CE
Model Number: K-LB-1.30G
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

P+F K-LB-1.30G SIL 3 Surge Protection Barrier 24V DC 2-Channel

Description
Number Of Protected Signal Lines: 2 Topology: Grounded
Safety Integrity Level (SIL): SIL 3 Connection: Protected Area: Terminals 7, 8 Unprotected Area: Terminals 1, 2
Rated Current: 250 MA Leakage Current: < 10 µA At 24 V And 25 °C (77 °F) , Line-line
Nominal Voltage: 24 V DC Maximum Continuous Operating Voltage: 30 V DC
Highlight:

P+F Surge Protection Barrier

,

Surge Protection Barrier K-LB-1.30G

,

8 Terminals P+F Sensors

P+F K-LB-1.30G Surge Protection Barrier 8 Terminals For Unprotected Area
Product Overview
  • 1-channel surge protection barrier
  • Mounts on DIN mounting rail
  • Suitable for intrinsically safe or non-intrinsically safe 30 V applications
  • Protects field or control circuit inputs
  • Maximum surge current (8/20 µs) 20 kA
  • Features uninterruptible operation with auto reset
  • Safety Integrity Level (SIL) 3 according to IEC/EN 61508
Key Specifications
Attribute Value
Number of protected signal lines 2
Topology Grounded
Safety Integrity Level (SIL) SIL 3
Connection Protected area: terminals 7, 8
Unprotected area: terminals 1, 2
Rated current 250 mA
Leakage current < 10 µA at 24 V and 25 °C (77 °F), line-line
Nominal voltage 24 V DC
Maximum continuous operating voltage 30 V DC
Electrical Specifications
Series resistance < 0.5 Ω per line
Impulse rating 10 kV/5 kA (category C2)
2 kV/2 kA (category D1)
Impulse discharge current (10/350 µs) 2 kA per line (2x)
Nominal discharge current (8/20 µs) 5 kA per line (10x)
Rated surge current (8/20 µs) 10 kA per line (1x)
Total discharge current (8/20 µs) 20 kA (1x)
Voltage protection level max. 100 V line-line for nominal discharge current In
max. 50 V line-earth for nominal discharge current In
Impulse reset time < 30 ms
Mechanical Specifications
Degree of protection IP20
Connection Screw terminals
Core cross section 2 x 2.5 mm²
Mass Approx. 100 g
Dimensions (W x H x D) 12.5 x 115 x 116 mm (0.5 x 4.5 x 4.6 inch)
Mounting On 35 mm DIN mounting rail according to EN 60715:2001
Hazardous Area Certifications
EU-type examination certificate PTB 00 ATEX 2176 X
Marking II 2(1)G Ex ia IIC T6/T5/T4
Temperature class T6 for ambient temperature ≤ 50 °C
T5 for ambient temperature ≤ 70 °C
T4 for ambient temperature ≤ 80 °C
Voltage 30 V
Current 250 mA
Product Images

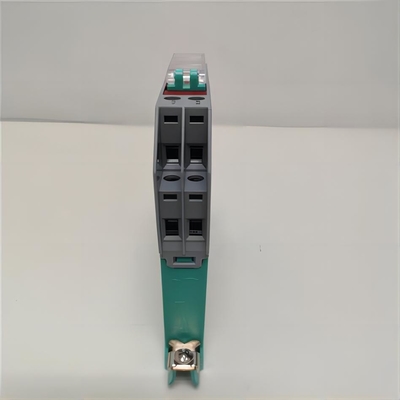

P+F K-LB-1.30G SIL 3 Surge Protection Barrier 24V DC 2-Channel 0

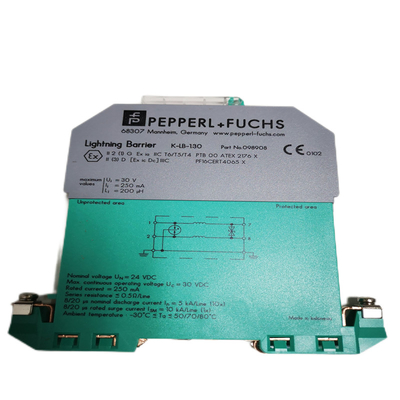

P+F K-LB-1.30G SIL 3 Surge Protection Barrier 24V DC 2-Channel 1

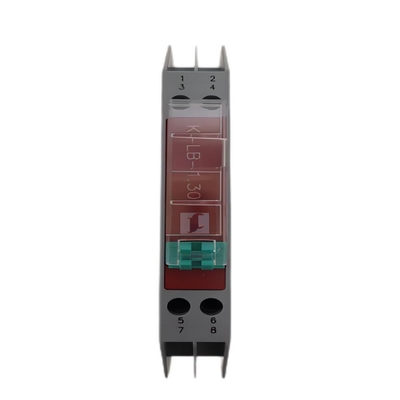

P+F K-LB-1.30G SIL 3 Surge Protection Barrier 24V DC 2-Channel 2
For usage in hazardous area, observe the EC-type examination certificate.
