Rosemount 1066 Single Channel Transmitter for pH Conductivity DO Cl O3

Rosemount 1066 Single Channel Transmitter for pH Conductivity DO Cl O3
Rosemount 1066 Single Channel Transmitter for pH Conductivity DO Cl O3 Rosemount 1066 Single Channel Transmitter for pH Conductivity DO Cl O3 Rosemount 1066 Single Channel Transmitter for pH Conductivity DO Cl O3

Large Image :  Rosemount 1066 Single Channel Transmitter for pH Conductivity DO Cl O3

Product Details:
Place of Origin: Mexico
Brand Name: Rosemount
Certification: CE
Model Number: 1066-P-HT-73
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

Rosemount 1066 Single Channel Transmitter for pH Conductivity DO Cl O3

Description
Power Supply: Supply Voltage At The Transmitter Terminals Should Be At Least 12.7Vdc. Power Supply Voltage Should Cover The Voltage Drop On The Cable Plus The External Load Resistor Required For HART® Communications (250 Ω) Communication Protocol: HART™ Communications & Diagnostics: PV, SV, TV, And 4V Assignable, Temperature
Diagnostics: PV, SV, TV, And 4V Assignable Input: One Sensor Input
Measurement Type: Measures PH Levels, Conductivity Levels, Chlorine Concentration, Dissolved Oxygen Concentration And Ozone Concentration With Compatible Sensors. Weight: R2 Lbs/3 Lbs (1 Kg/1.5 Kg)
Highlight:

HART rosemount 1066 transmitter

,

PV SV Single Channel Transmitter

,

1066-P-HT-73

Rosemount 1066 Single Channel Transmitter 1066-P-HT-73
Product Overview

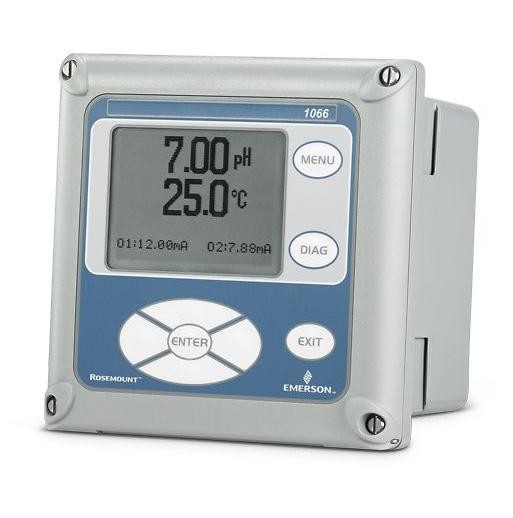

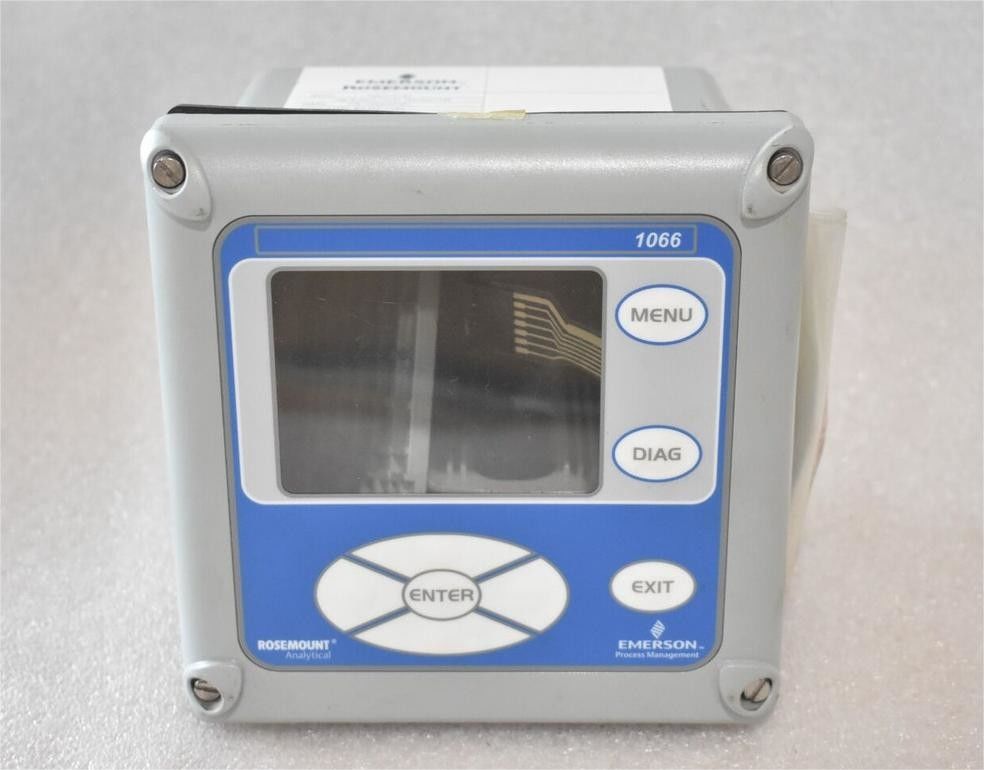

The Rosemount 1066 Single Channel Transmitter supports continuous measurement of one liquid analytical input - pH sensor, conductivity sensor, chlorine sensor, dissolved oxygen sensor or ozone sensor. The design supports easy internal access and wiring connections. The large display provides excellent visibility for live measurements and displayed parameters, with process values always visible during programming and calibration.

Technical Specifications
Attribute Value
Power Supply Supply voltage at the transmitter terminals should be at least 12.7Vdc. Power supply voltage should cover the voltage drop on the cable plus the external load resistor required for HART® communications (250 Ω)
Communication Protocol HART™ Communications & diagnostics: PV, SV, TV, and 4V assignable, temperature
Diagnostics PV, SV, TV, and 4V assignable
Input One sensor input
Measurement Type Measures pH levels, conductivity levels, chlorine concentration, dissolved oxygen concentration and ozone concentration with compatible sensors
Weight 2 lbs/3 lbs (1 kg/1.5 kg)
Key Features
  • Fast and easy installation using Quick Start programming
  • Intrinsically Safe FM, CSA, and ATEX/IECEx Hazardous Location Approvals
  • Visibility of process parameters through HART® or FOUNDATION™ Fieldbus digital communications
  • Seamless integration with PLCs and DCSs via HART® or FOUNDATION™ Fieldbus communication options
Compatible Part Numbers
2002011 9200273 9210012 9210013 9210014 00390-7101-0001 11275-01 12707-00 23242-02 23554-00 23555-00 23820-00 23820-01 24091-00 24281-00 24281-01 24281-02 24281-03 24281-04 24281-05 24281-06 24281-07 24281-08 24479-00 33342-00 33343-00 33893-00 33894-00 33898-00 34059-00 R508-8OZ
Rosemount 1066 Single Channel Transmitter for pH Conductivity DO Cl O3 0
