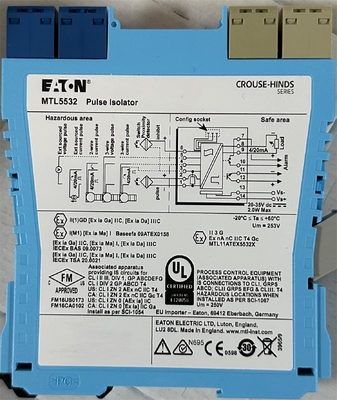

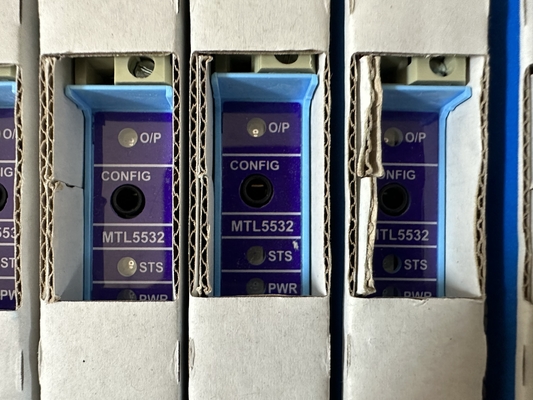

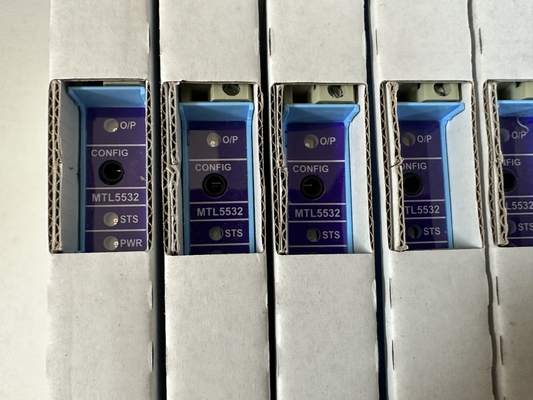

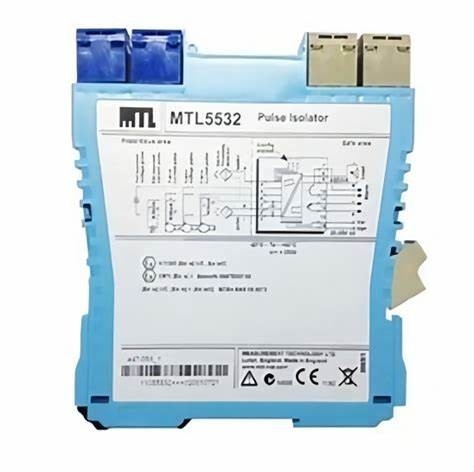

MTL5532 Pulse Isolator 0-50kHz for Hazardous Areas

Large Image : MTL5532 Pulse Isolator 0-50kHz for Hazardous Areas

Product Details:

Place of Origin:	USA
Brand Name:	MTL
Certification:	CE
Model Number:	MTL5532

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

MTL5532 Pulse Isolator 0-50kHz for Hazardous Areas

Description

Number Of Channels:	One, Fully Floating	Sensor Type:	Switch Or Proximity Detector (NAMUR/BS EN 60947–5–6:2001) 2– Or 3–wire Voltage Or Pulse Transmitter
Location Of Switch:	Zone 0, IIC, T6 Hazardous Area Div. 1, Group A, Hazardous Location	Alarm Output:	Relay ON In Alarm, 0.5A @ 35Vdc Max.
LED Indicator:	Green: Power Indication Yellow: On When Output Circuit Is On Red: Flashing When Line Fault Or Error	Frequency Range:	0 – 50kHz - Pulse Output Mode 0 – 10KHz - For Analogue Output
Highlight:	0.5A MTL Safety Barrier , 50kHz MTL Safety Barrier , MTL5532 pulse isolator 35Vdc

0 – 50kHz MTL Safety Barrier MTL5532 Pulse Isolator 35Vdc

Key Specifications

Attribute	Value
Number of channels	One, fully floating
Sensor type	Switch or proximity detector (NAMUR/BS EN 60947–5–6:2001) 2– or 3–wire voltage or pulse transmitter
Location of switch	Zone 0, IIC, T6 hazardous area Div. 1, Group A, hazardous location
Alarm output	Relay ON in alarm, 0.5A @ 35Vdc max.
LED indicator	Green: power indication Yellow: on when output circuit is on Red: flashing when line fault or error
Frequency range	0 – 50kHz - pulse output mode 0 – 10KHz - for analogue output

Product Overview

The MTL5532 Pulse Isolator safely isolates pulses from switches, proximity detectors, current pulse transmitters, or voltage pulse transmitters located in hazardous areas. Designed for applications requiring high pulse rates and fast response times, it accurately repeats pulses into safe areas while providing an analogue output proportional to frequency and configurable alarm relay output.

Detailed Specifications

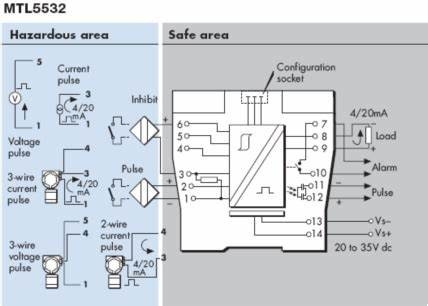

Input Characteristics

Switch input: Output ON if switch is closed

Proximity detector input: Excitation: 7.0 to 9.0V dc from 1kΩ nominal

Current pulse input: Transmitter supply: 16.5V dc at 20mA

Voltage pulse input: Input impedance: > 10kΩ

Output Characteristics

Safe-area pulse output: Maximum delay: 10µs

Safe-area current output: Signal range: 4 to 20mA

Alarm output: Relay ON in alarm, 0.5A @ 35Vdc max.

Performance

Pulse width: High: 10µs min, Low: 10µs min

Frequency range: 0 - 50kHz (pulse output), 0 - 10KHz (analogue)

Power Requirements

Current draw: 65mA at 24V dc, 70mA at 20V dc, 55mA at 35V dc

Power dissipation: 1.35W maximum at 24V, 1.75W maximum at 35V

Configuration

Requires a personal computer running MTL PCS45 software with PCL45USB serial interface for configuration.
