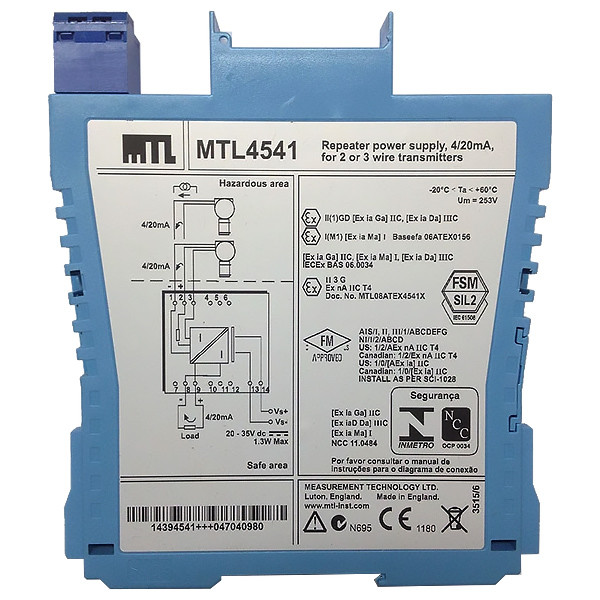

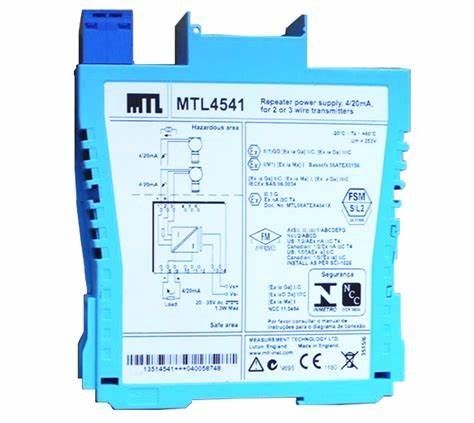

Name: HART MTL4541 Safety Barrier Repeater Power Supply for Hazardous Areas
Brand: SC Automation Limited
SKU: MTL4541
Availability: InStock

HART MTL4541 Safety Barrier Repeater Power Supply for Hazardous Areas

Basic Information

Place of Origin:	USA
Brand Name:	MTL
Certification:	CE
Model Number:	MTL4541

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Number Of Channels:

One

Location Of Transmitte:

Zone 0, IIC, T4–6 Hazardous Area If Suitably Certified Div. 1, Group A Hazardous Location

Safe-area Circuit Ripple:

< 50µA Peak-to-peak

Temperature Drift:

< 0.8µA/°C

Communications Supported:

HART (terminals 1 & 2 Only)

LED Indicator:

Green: Power Indication

Highlight:

HART MTL Safety Barrier

MTL4541 MTL Safety Barrier

repeater power supply USA

HART MTL4541 MTL Safety Barrier Repeater Power Supply

Product Overview

The MTLx541 provides a fully-floating DC supply for energizing a conventional 2- or 3-wire 4/20mA transmitter located in a hazardous area, while repeating the current in another floating circuit to drive a safe-area load. For HART 2-wire transmitters, the unit enables bi-directional communication signals superimposed on the 4/20mA loop current.

Key Features

Single-channel design for reliable operation
Supports HART communication (terminals 1 & 2 only)
Green LED power indicator for clear status monitoring
Safe-area circuit ripple < 50µA peak-to-peak
Low temperature drift < 0.8µA/°C
Suitable for Zone 0, IIC, T4-6 hazardous areas when certified

Technical Specifications

Parameter	Specification
Number of channels	One
Hazardous area classification	Zone 0, IIC, T4-6 (when certified) Div. 1, Group A
Safe-area output	Signal range: 4 to 20mA Under/over-range: 0 to 24mA Load resistance (MTLx541): 0-360Ω @ 24mA, 0-450Ω @ 20mA
Transfer accuracy at 20°C	Better than 15µA
Response time	Settles within 10% of final value in 50µs
Power consumption	51mA at 24V (with 20mA signal)
Power dissipation	MTLx541: 0.7W @ 24V dc MTLx541S: 1.0W @ 24V dc

Safety Information

Terminals 2 to 1 and 3: Uo =28V, Io =93mA, Po =651mW, Um = 253V rms or dc. Terminals 1 to 3: Simple apparatus ≤1.5V, ≤0.1A and ≤25mW; can be connected without further certification into any IS loop with an open-circuit voltage <28V.

Related Part Numbers

HCU16 MTL5521 MTL4546Y MTL7761PAC HCU3700 MTL5522 MTL4549Y MTL7765AC HM64RIB20-1.0 MTL5531 MTL4573 MTL7787+ HM64RIB20-1.5 MTL5532 MTL4575 MTL7787P+ HMM64 MTL5541 MTL4646Y MTLCPS16 HMRIB16-1.0 MTL5541S MTL4850 NJ5-18GK-N HMS64 MTL5544 MTL4851 SD150X HTP-SC32 MTL5544D MTL4852 SD32 MTL4044D MTL5546 MTL5018 SD32X MTL4511 MTL5546Y MTL5032 SDRTD MTL4516 MTL5561 MTL5042 SLP32D MTL4516C MTL5573 MTL5044 TP48-3-I-NDI MTL4521 MTL5575 MTL5049 TP48-3-N-NDI MTL4541 MTL5582B MTL5511 TP48-4-I-NDI PCL45USB MTL7728+ MTL5514D TP48-4-N-NDI MTL4544 MTL7756AC MTL5516 TP48-N-NDI MTL4544D MTL7760AC MTL5516C ZB24571
