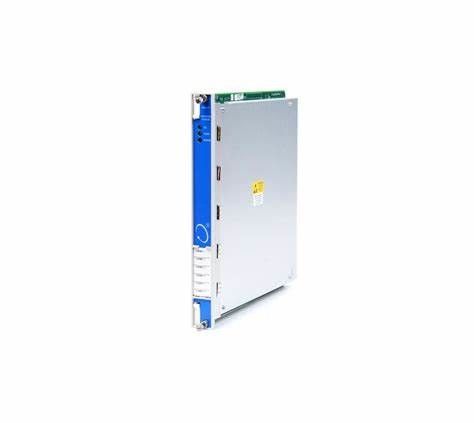

Bently Nevada 3500/61 Temperature Modules With Recorder Outputs 163179-02

Large Image : Bently Nevada 3500/61 Temperature Modules With Recorder Outputs 163179-02

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CE
Model Number:	3500/61-01-00 163179-02 133819-02

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-16weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Bently Nevada 3500/61 Temperature Modules With Recorder Outputs 163179-02

Description

Signal:	Accepts From 1 To 6 RTD Or TC Transducer Signals.	Input Impedance:	10 MΩ For Each Lead Input.
Power Consumption:	Nominal Consumption Of 9 Watts.	Voltage Compliance:	0 To +12 Vdc Range Across Load. Load Resistance Is 0 To 600 Ω.
Monitor Module:	1 Full-height Front Slot	I/O Modules:	1 Full-height Rear Slot
Highlight:	Bently Nevada 3500/61 temperature modules , temperature modules 163179-02 , 163179-02

163179-02 Bently Nevada 3500 System 3500/61 Temperature Modules 133819-02

Product Specifications

Attribute	Value
Signal	Accepts from 1 to 6 RTD or TC transducer signals.
Input Impedance	10 MΩ for each lead input.
Power Consumption	Nominal consumption of 9 watts.
Voltage Compliance	0 to +12 Vdc range across load. Load resistance is 0 to 600 Ω.
Monitor Module	1 full-height front slot
I/O Modules	1 full-height rear slot

Product Overview

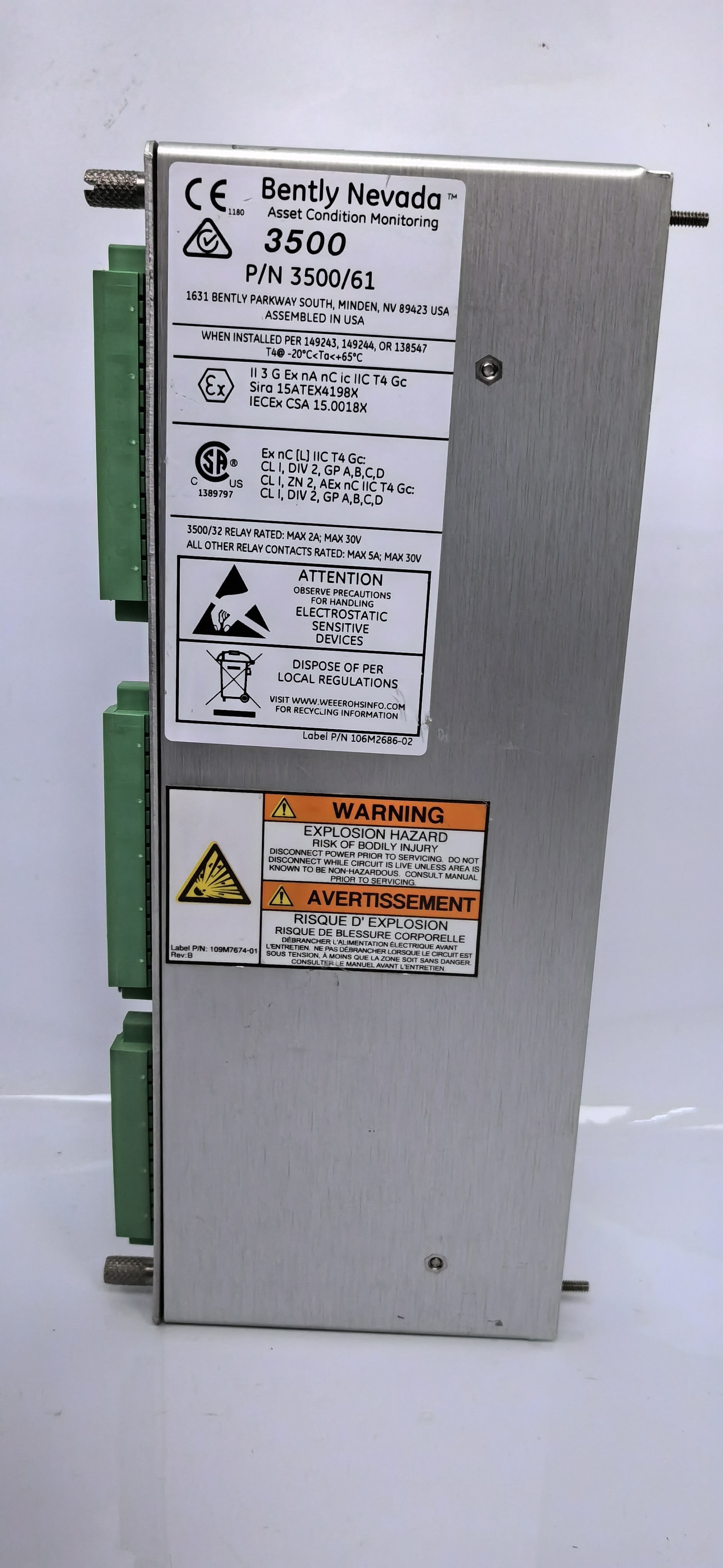

The Bently Nevada 3500/61 Temperature Modules (3500/61-01-00 163179-02 133819-02) provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints.

The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.

The user programs the modules to perform either RTD or TC temperature measurements using the 3500 Rack Configuration Software. Different I/O modules are available in RTD/TC non-isolated or TC isolated versions.

Configuration Options

I/O Module Types

RTD/TC Non-isolated I/O Module Internal Terminations
RTD/TC Non-isolated I/O Module External Terminations
TC Isolated I/O Module Internal Terminations
TC Isolated I/O Module External Terminations
RTD/TC Non-isolated I/O Module with Internal Barriers

Ordering Information

3500/61 Temperature Monitor

163179-02

3500/61 Temperature Monitor (with recorders)

I/O Modules

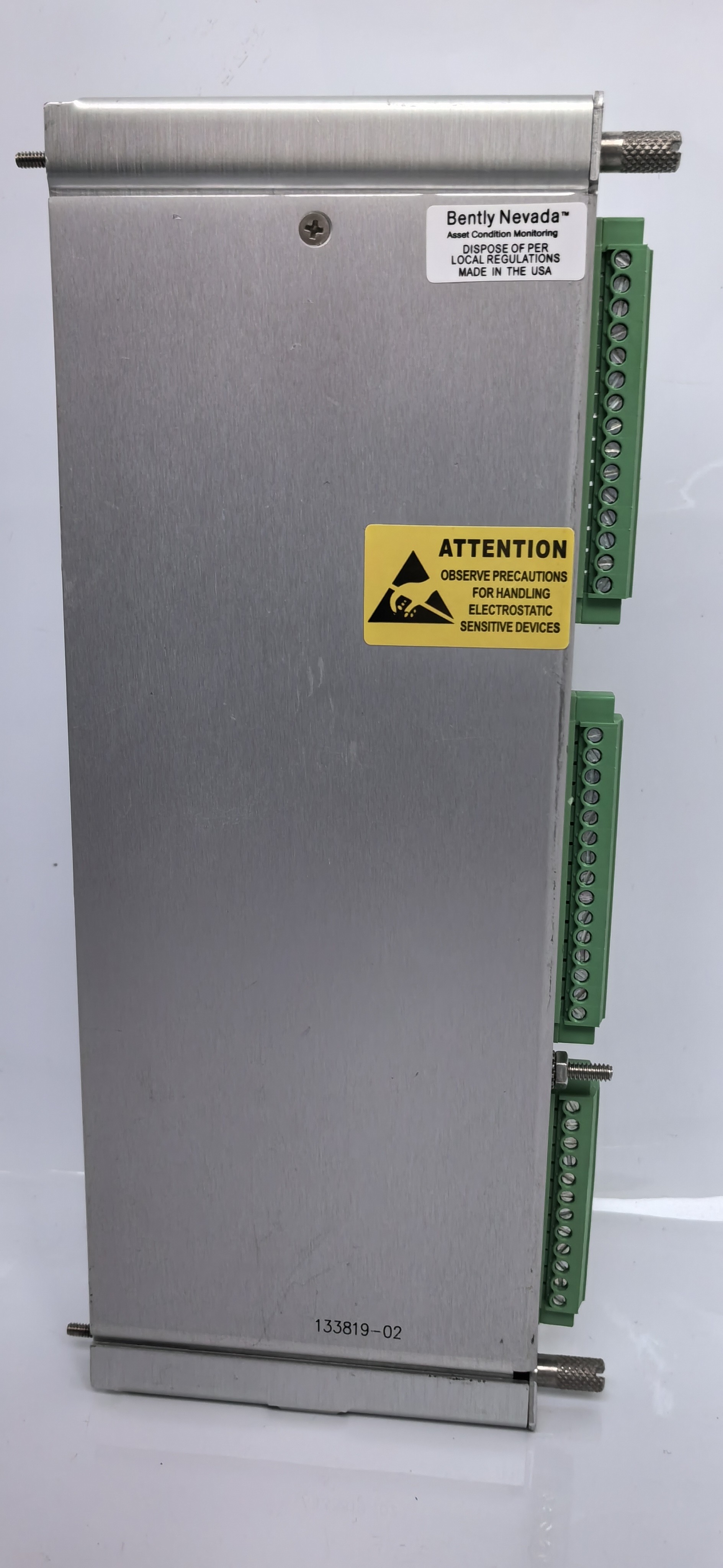

133819-02	3500/61 RTD/TC Non-Isolated I/O Module Internal Terminations
133827-02	3500/61 RTD/TC Non-Isolated I/O Module External Terminations
133835-02	3500/61 TC Isolated I/O Module Internal Terminations
133843-02	3500/61 TC Isolated I/O Module External Terminations
136711-02	3500/61 RTD/TC I/O Module with Internal Barriers and Internal Terminations (Not-Isolated)

Related Parts

177230-01-01-CN	991-25-50-01-00	330105-02-12-05-02-00
177313-02-02-00	330106-05-30-05-02-00	330105-02-12-05-02-CN
