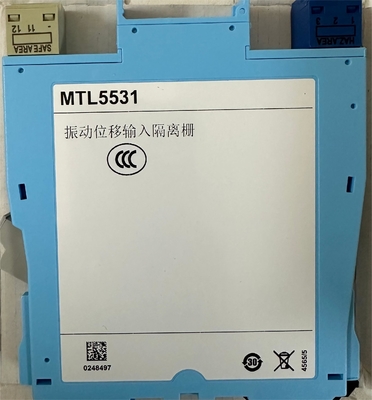

MTL5531 Vibration Transducer Interface 2-Wire 3.3mA

Large Image : MTL5531 Vibration Transducer Interface 2-Wire 3.3mA

Product Details:

Place of Origin:	USA
Brand Name:	MTL
Certification:	CE
Model Number:	MTL5531

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

MTL5531 Vibration Transducer Interface 2-Wire 3.3mA

Description

Sensor Type:	2- Or 3-wire Vibration Transducer	Hazardous-area Input:	Input Impedance (terminals 2 & 3): 10kΩ
Signal Range:	Minimum –20V, Maximum –0.5V	Temperature Coefficient:	±50ppm/°C (10 To 65°C) ±100ppm/°C (–20 To 10°C)
Safe-area Output Impedance:	<20Ω	LED Indicator:	Green: Power Indication
Highlight:	CE vibration transducer 2 wire , 3.3mA vibration transducer , MTL5531

CE 3.3mA MTL5531 Vibration Transducer Interface 2 Wire

Product Specifications

Attribute	Value
Sensor type	2- or 3-wire vibration transducer
Hazardous-area input	Input impedance (terminals 2 & 3): 10kΩ
Signal range	Minimum –20V, maximum –0.5V
Temperature coefficient	±50ppm/°C (10 to 65°C) ±100ppm/°C (–20 to 10°C)
Safe-area output impedance	<20Ω
LED indicator	Green: power indication

Product Description

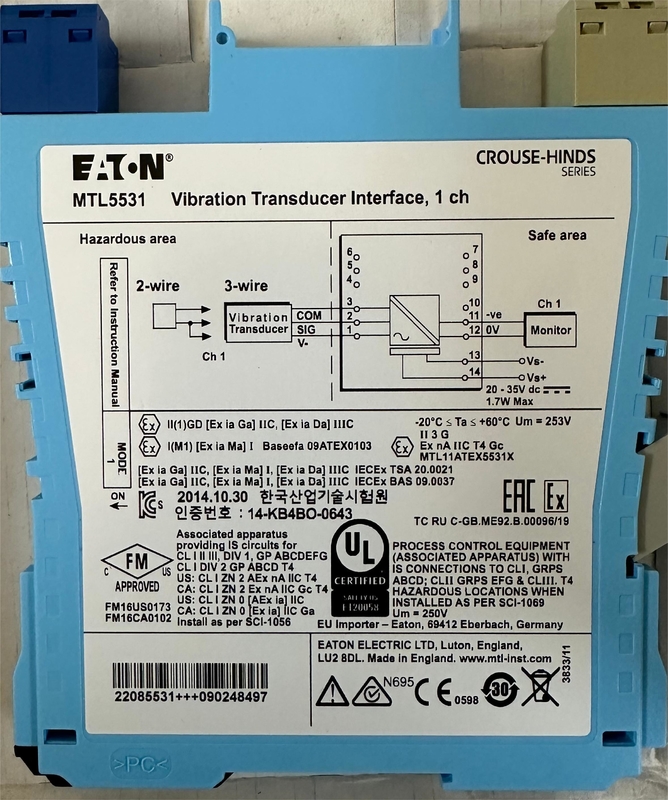

The MTLx531 repeats a signal from a vibration sensor in a hazardous area, providing an output for a monitoring system in the safe area. The interface is compatible with 3-wire eddy-current probes and accelerometers or 2-wire current sensors; the selection is made by a switch on the side of the module.

Detailed Specifications

Location of signal source: Zone 0, IIC, T4-6 hazardous area if suitably certified

Div. 1, Group A hazardous location

Hazardous-area Input

Input impedance: 10kΩ (terminals 2 & 3)

Transducer Specifications

Supply current (2-wire): 3.3mA (nom.) for 2-wire sensors, user selectable by switch

Signal range: Minimum -20V, maximum -0.5V

Performance Characteristics

DC transfer accuracy at 20°C: <±50mV

AC transfer accuracy:

0Hz to 1kHz: ±1%
1kHz to 10kHz: -5% to +1%
10kHz to 20kHz: -10% to +1%

Temperature coefficient:

±50ppm/°C (10 to 65°C)
±100ppm/°C (-20 to 10°C)

Voltage bandwidth: -3dB at 47kHz (typical)

Phase response:

<14µs, equivalent to:
-1° at 200Hz
-3° at 600Hz
-5° at 1kHz
-50° at 10kHz
-100° at 20kHz

Output Specifications

Safe-area output impedance: <20Ω

LED indicator: Green: power indication

Maximum current consumption: 65mA at 24V (10mA transducer load)

Maximum power dissipation: 1.33W

Safety Information

Terminals 3 to 1: Uo=26.6V Io=94mA Po=0.66W Um = 253V rms or dc

Terminals 3 to 2: Non-energy-storing apparatus ≤1.5V, ≤0.1A and ≤25mW
