MTL4546Y Isolating Driver 500Hz-10kHz 16V 20mA Hazardous Area

Large Image : MTL4546Y Isolating Driver 500Hz-10kHz 16V 20mA Hazardous Area

Product Details:

Place of Origin:	USA
Brand Name:	MTL
Certification:	CE
Model Number:	MTL4546Y

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

MTL4546Y Isolating Driver 500Hz-10kHz 16V 20mA Hazardous Area

Description

Number Of Channels:	One	Location Of I/P Converter:	Zone 0, IIC, T4–6 Hazardous Area If Suitably Certified Div. 1, Group A, Hazardous Location
Digital Signal Bandwidth:	500Hz To 10kHz	Maximum Load Resistance:	800Ω (16V At 20mA)
Output Resistance:	> 1MΩ	LED Indicator:	Green: Power Indication
Highlight:	MTL4546Y , 10kHz isolating driver , 500Hz isolating driver

500Hz To 10kHz MTL4546Y Isolating Driver 16V 20mA ODM

Product Attributes

Number of channels	one
Location of I/P converter	Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A, hazardous location
Digital signal bandwidth	500Hz to 10kHz
Maximum load resistance	800Ω (16V at 20mA)
Output resistance	> 1MΩ
LED indicator	Green: power indication

Product Description

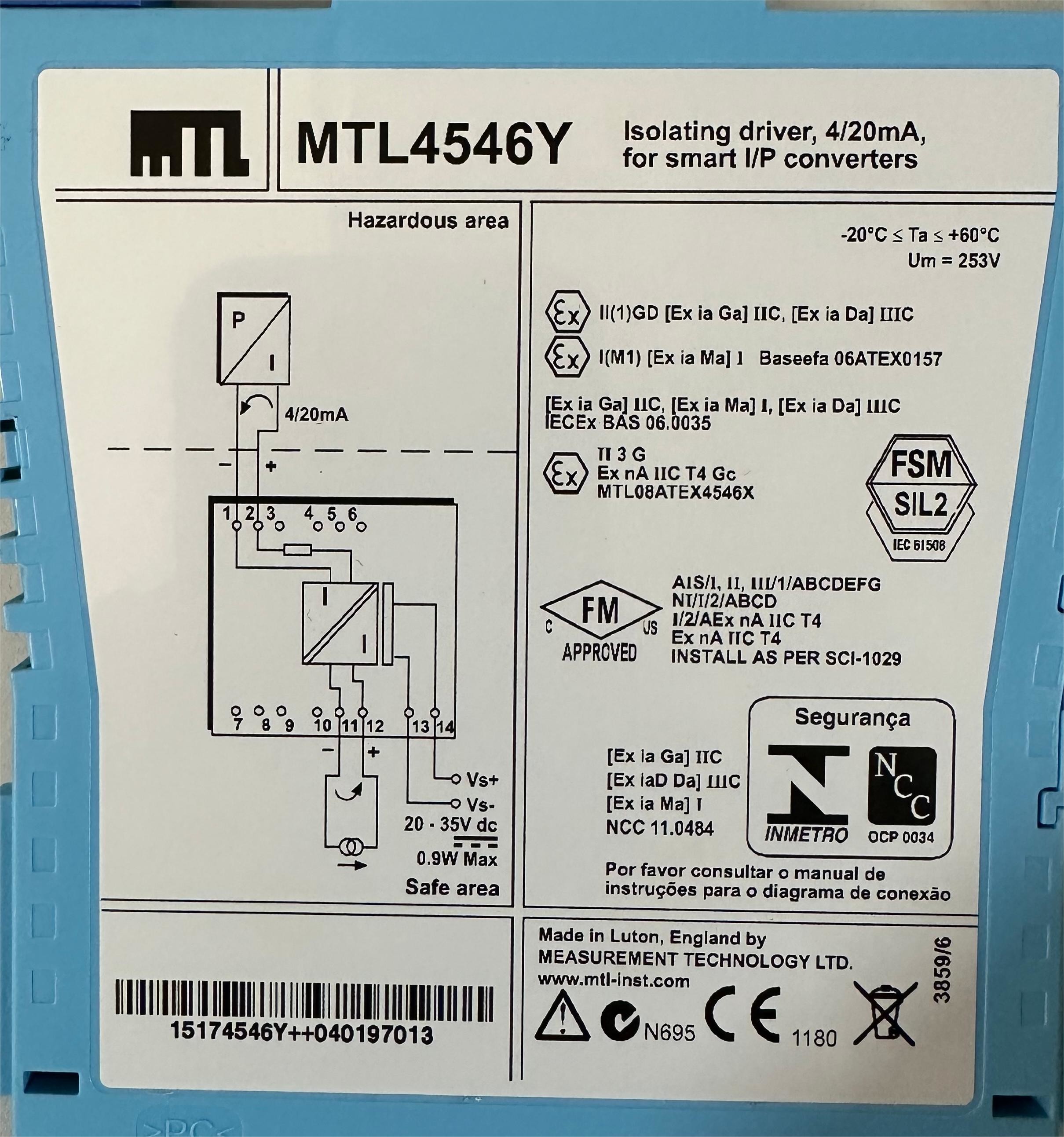

MTL4546Y ISOLATING DRIVER

The MTLx546 accepts a 4/20mA floating signal from a safe-area controller to drive a current/pressure converter (or any other load up to 800Ω) in a hazardous area. For HART valve positioners, the module also permits bi-directional transmission of digital communication signals. Process controllers with a readback facility can detect open or short circuits in the field wiring: if these occur, the current taken into the terminals drops to a preset level. The MTL4546C and the MTLx546Y are very similar to the MTLx546 except that they provide open circuit detection only (i.e. no short-circuit detection).

Specifications

Number of channels: One

Location of I/P converter: Zone 0, IIC, T4-6 hazardous area if suitably certified Div. 1, Group A, hazardous location

Working range: 4 to 20mA

Digital signal bandwidth: 500Hz to 10kHz

Maximum load resistance: 800Ω (16V at 20mA)

Minimum load resistance: 90Ω (short-circuit detection at < 50Ω)

Output resistance: > 1MΩ

Under/over range capability: Under range = 1mA, Over range = 24mA (load ≤ 520Ω)

Input and output circuit ripple: < 40µA peak-to-peak

Transfer accuracy at 20°C: Better than 20µA

Temperature drift: < 1.0µA/°C

LED indicator: Green: power indication

Maximum current consumption: 35mA at 24V dc (with 20mA signals into 250Ω load)

Power dissipation within unit: 0.8W at 24V (with 20mA signals into 250Ω load)

Safety description: Uo =28V Io =93mA Po =651mW Um = 253V rms or dc
