Endress+Hauser Ceraphant PTC31B Digital Pressure Switch with Ceramic Sensor Diaphragm and IO-Link Capability for 0.3% Accuracy

Endress+Hauser Ceraphant PTC31B Digital Pressure Switch with Ceramic Sensor Diaphragm and IO-Link Capability for 0.3% Accuracy
Endress+Hauser Ceraphant PTC31B Digital Pressure Switch with Ceramic Sensor Diaphragm and IO-Link Capability for 0.3% Accuracy
Endress+Hauser Ceraphant PTC31B Digital Pressure Switch with Ceramic Sensor Diaphragm and IO-Link Capability for 0.3% Accuracy Endress+Hauser Ceraphant PTC31B Digital Pressure Switch with Ceramic Sensor Diaphragm and IO-Link Capability for 0.3% Accuracy Endress+Hauser Ceraphant PTC31B Digital Pressure Switch with Ceramic Sensor Diaphragm and IO-Link Capability for 0.3% Accuracy
Basic Information
Place of Origin: CN/DE
Brand Name: Endress+Hauser
Certification: CE
Model Number: PTC31B-8CV3/0
Document: TI01130PEN_1025-00.pdf
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Original packaging
Delivery Time: 8-12 weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now
Supply Voltage: 10...30 VDC Reference Accuracy: 0.5 %, Platinum: 0.3 %
Long Term Stability: 0.2 % Of URL/year Process Temperature: -25 °C...+100 °C (-13 °F...+212 °F)
Measuring Cell: +100 Mbar...+40 Bar (+1.5 Psi...+600 Psi) Max Overpressure Limit: 60 Bar (900 Psi)

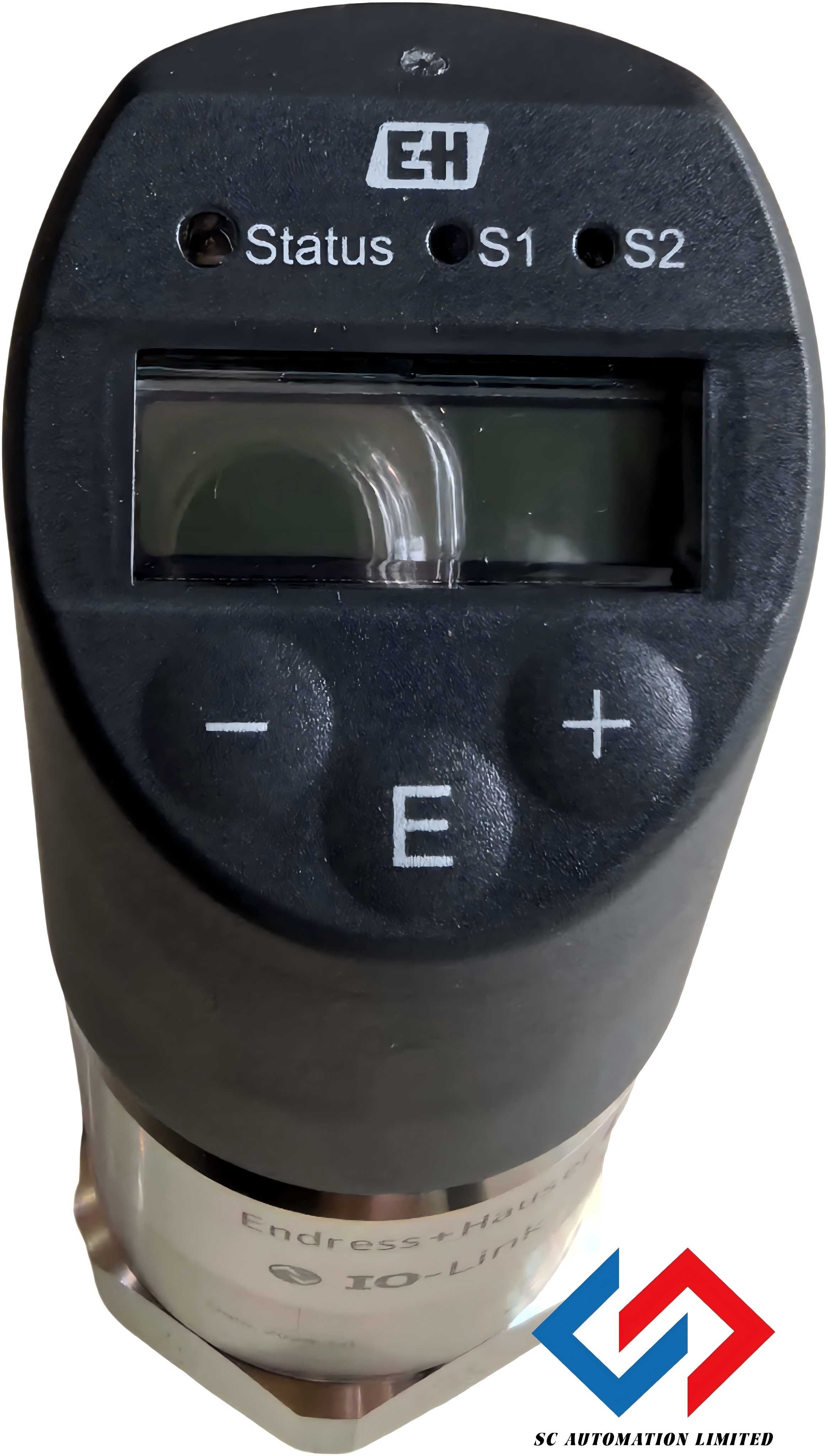

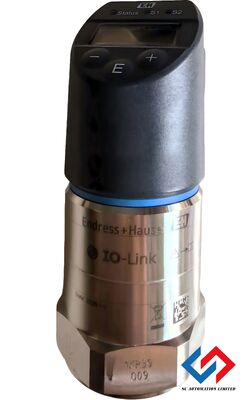

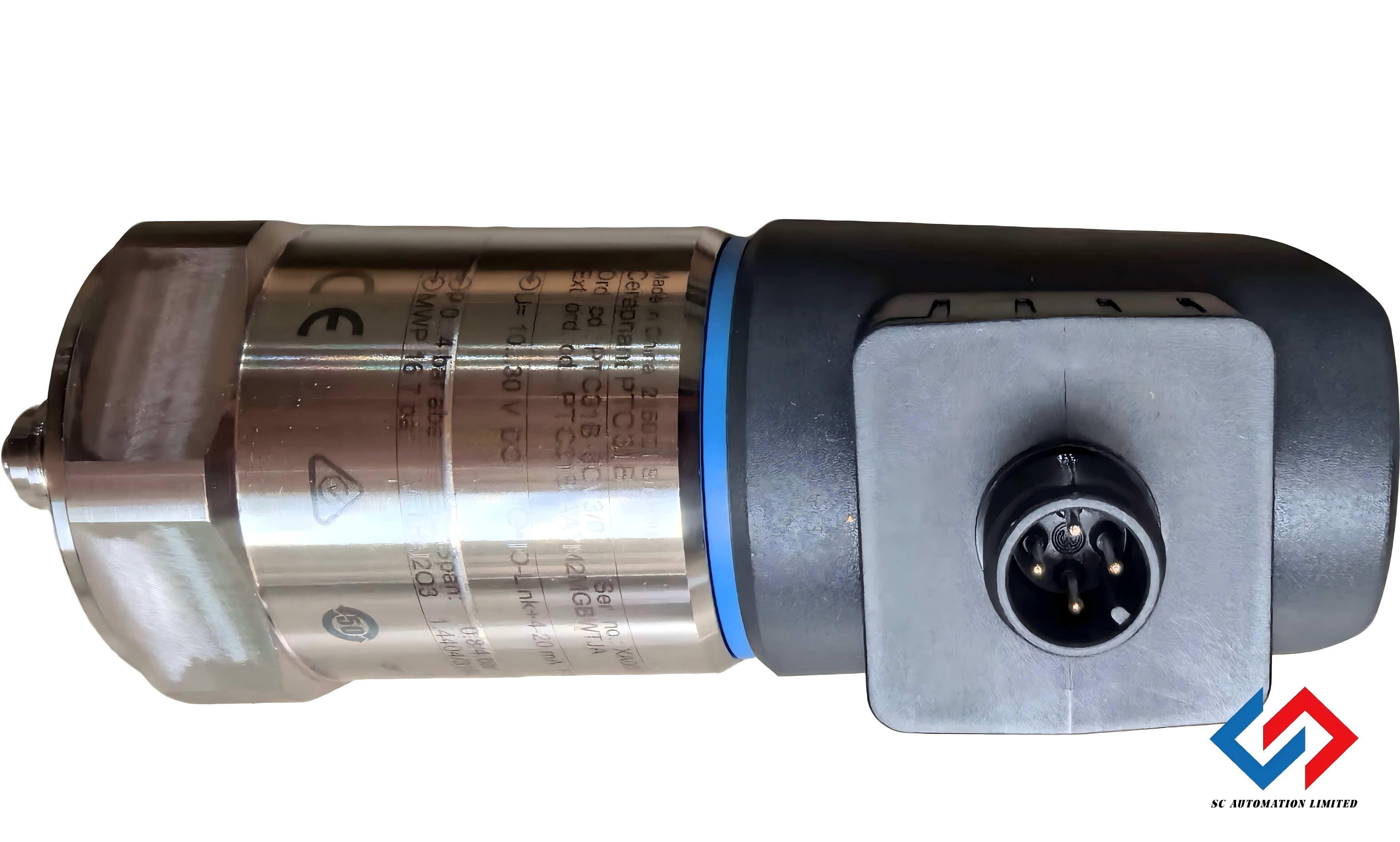

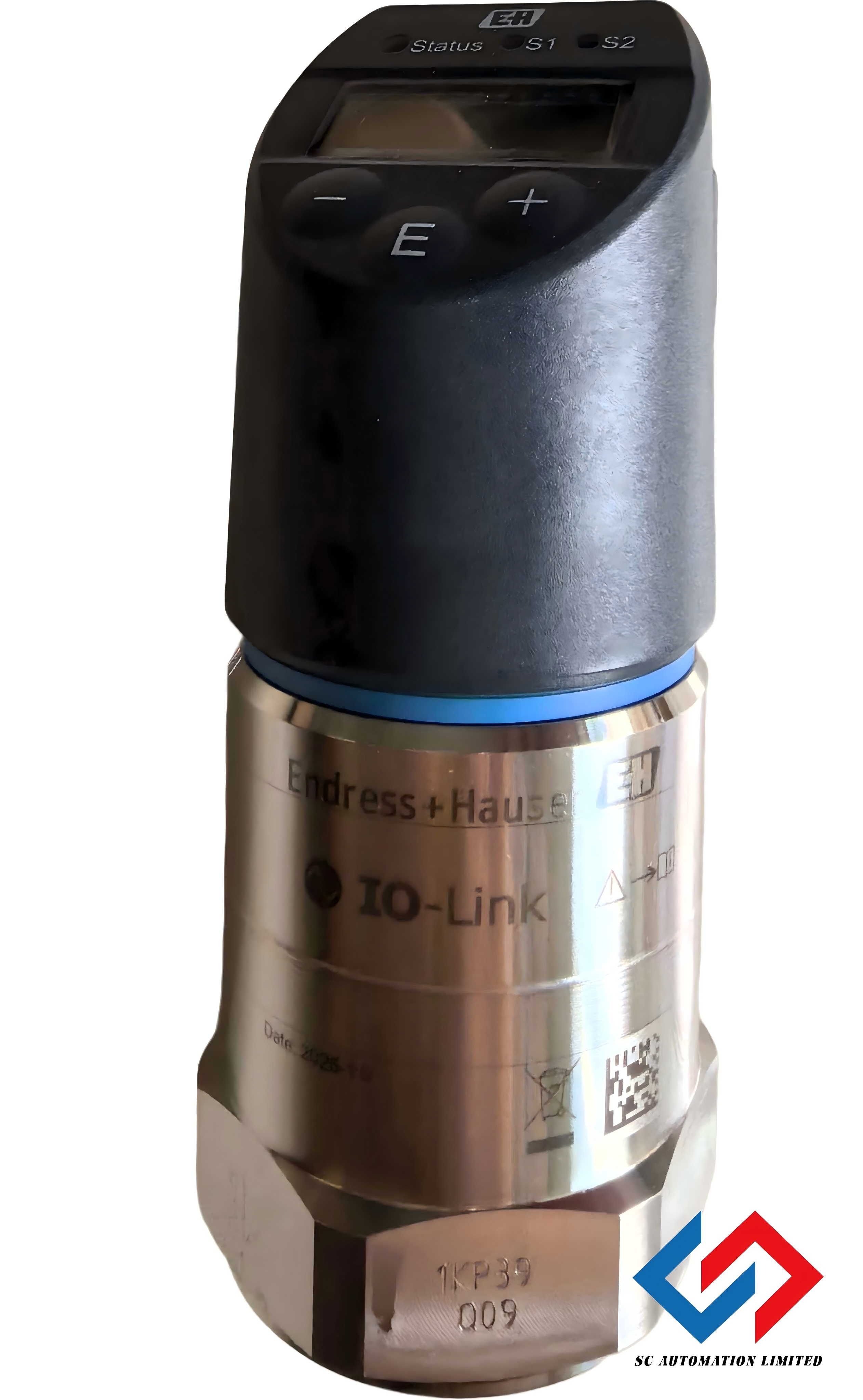

Endress+Hauser Ceraphant PTC31B Pressure Switch
Field of Application

The Ceraphant PTC31B is a cost-effective pressure switch featuring a ceramic, vacuum-tight measuring cell for safe measurement and monitoring of absolute and gauge pressure. This compact pressure switch offers exceptional stability and high vacuum resistance down to 0 bar absolute. IO-Link capability enables easy integration and device parameterization.

Pressure switch with ceramic sensor diaphragm for monitoring absolute and gauge pressures in gases, vapors, liquids, and dusts.

  • Process connections: Threads
  • Process temperature: -25 to +100°C (-13 to +212°F)
  • Pressure: -1/0 up to +40 bar (-15/0 up to +600 psi)
  • Accuracy: ±0.3%
Specifications
Measuring principle Pressure switch
Characteristic Intelligent pressure switch with capacitive sensor, long-term stable and abrasion resistant
Supply voltage 10...30 VDC
Reference Accuracy 0.5 %
Platinum: 0.3 %
Long term stability 0.2 % of URL/year
Process temperature -25 °C....+100 °C
(-13 °F....+212 °F)
Ambient temperature -20 °C...+70 °C
(-4 °C...+158 °F)
Measuring cell +100 mbar....+40 bar
(+1.5 psi....600 psi)
Max. overpressure limit 60 bar (900 psi)
Process connection Threads:
G1/4, G1/2,
MNPT1/4, MNPT1/2,
DIN13,
JIS R1/2
Communication 1x PNP switch
2x PNP switch
1x PNP switch +
4...20mA analogue
Design approvals EN 10204-3.1 Final inspection report
Cleaned from oil and grease
Cleaned for oxygen applications
Set min alarm
Specialities Digital display
Endress+Hauser Ceraphant PTC31B Digital Pressure Switch with Ceramic Sensor Diaphragm and IO-Link Capability for 0.3% Accuracy 0 Endress+Hauser Ceraphant PTC31B Digital Pressure Switch with Ceramic Sensor Diaphragm and IO-Link Capability for 0.3% Accuracy 1
