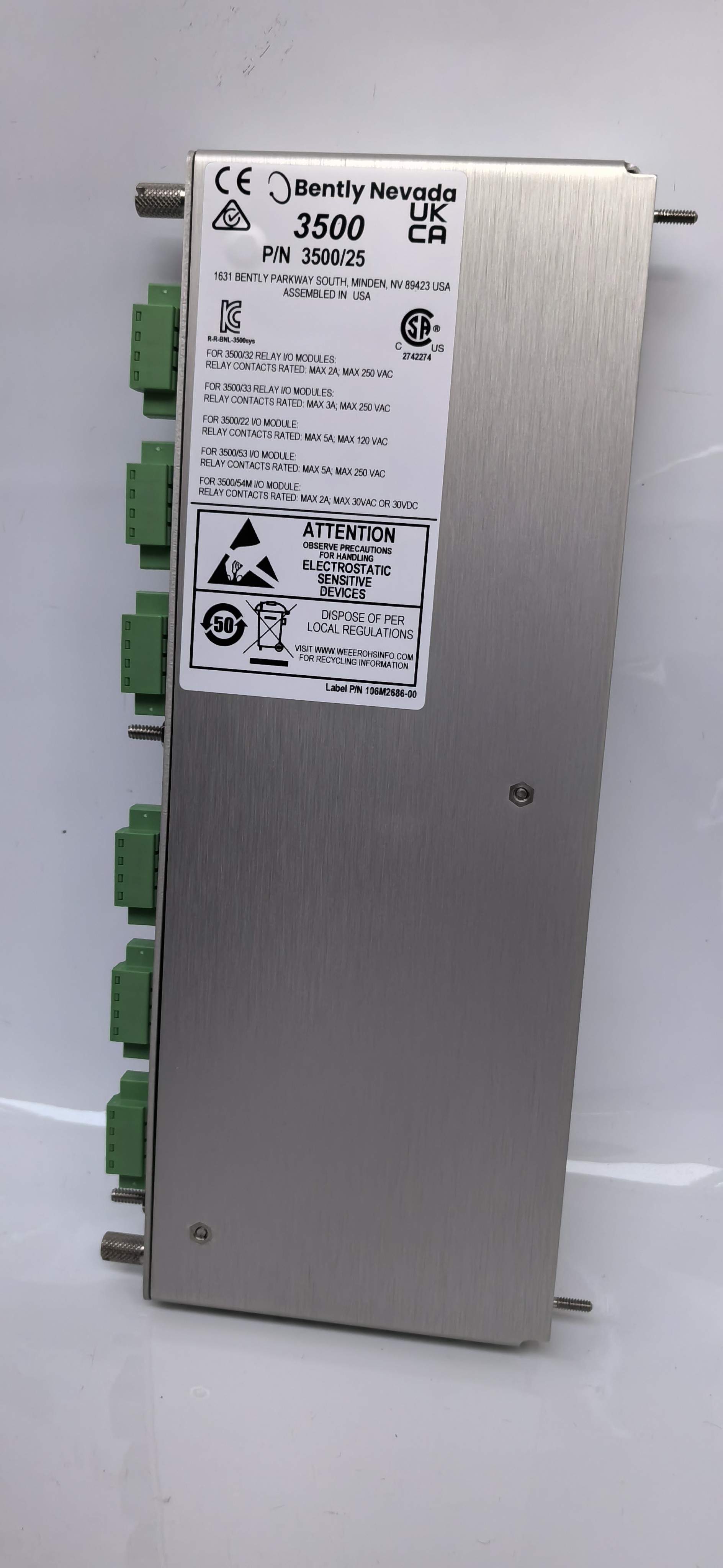

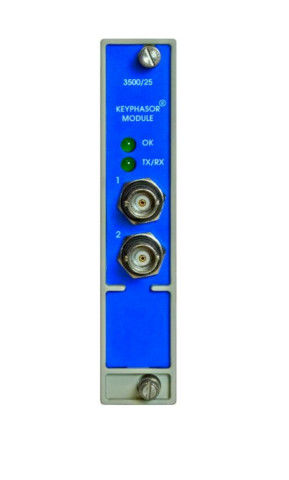

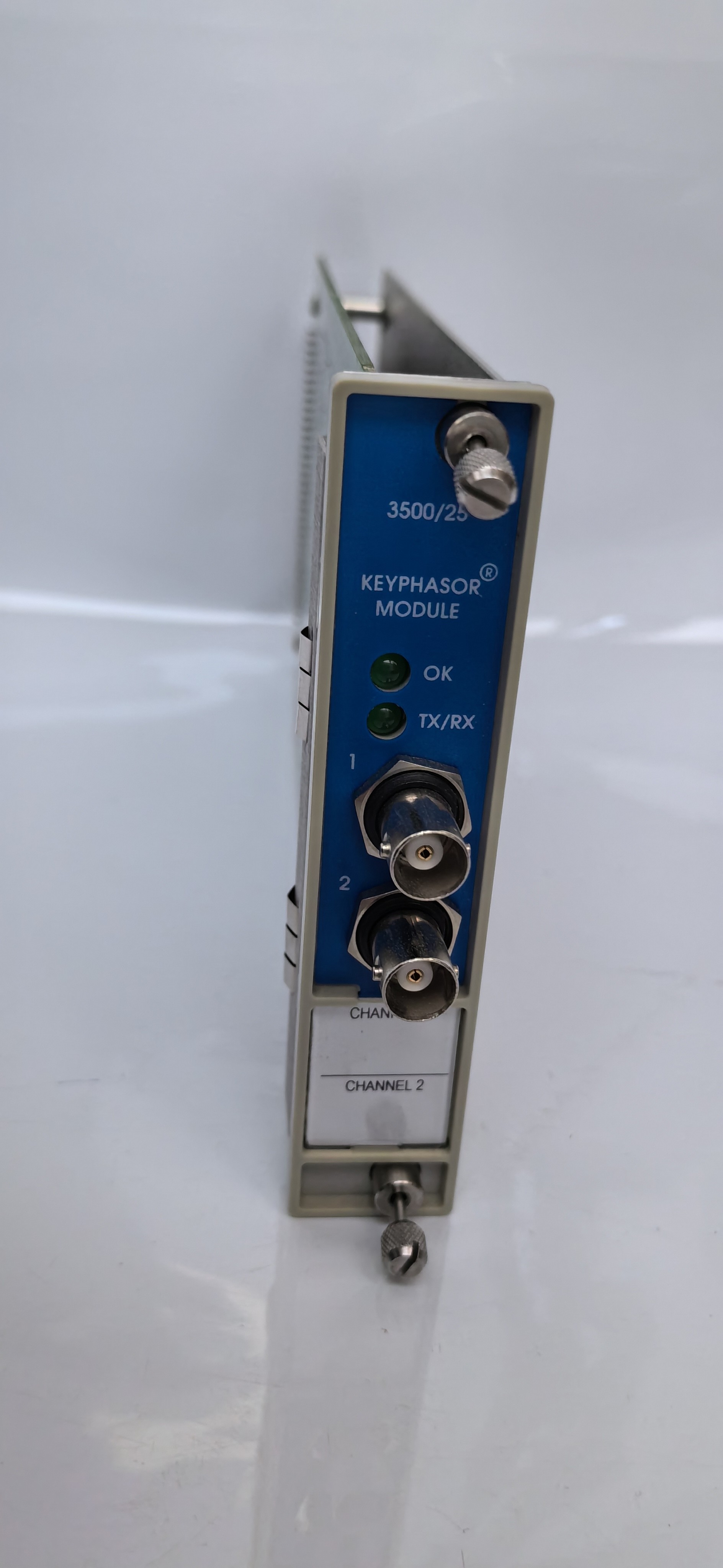

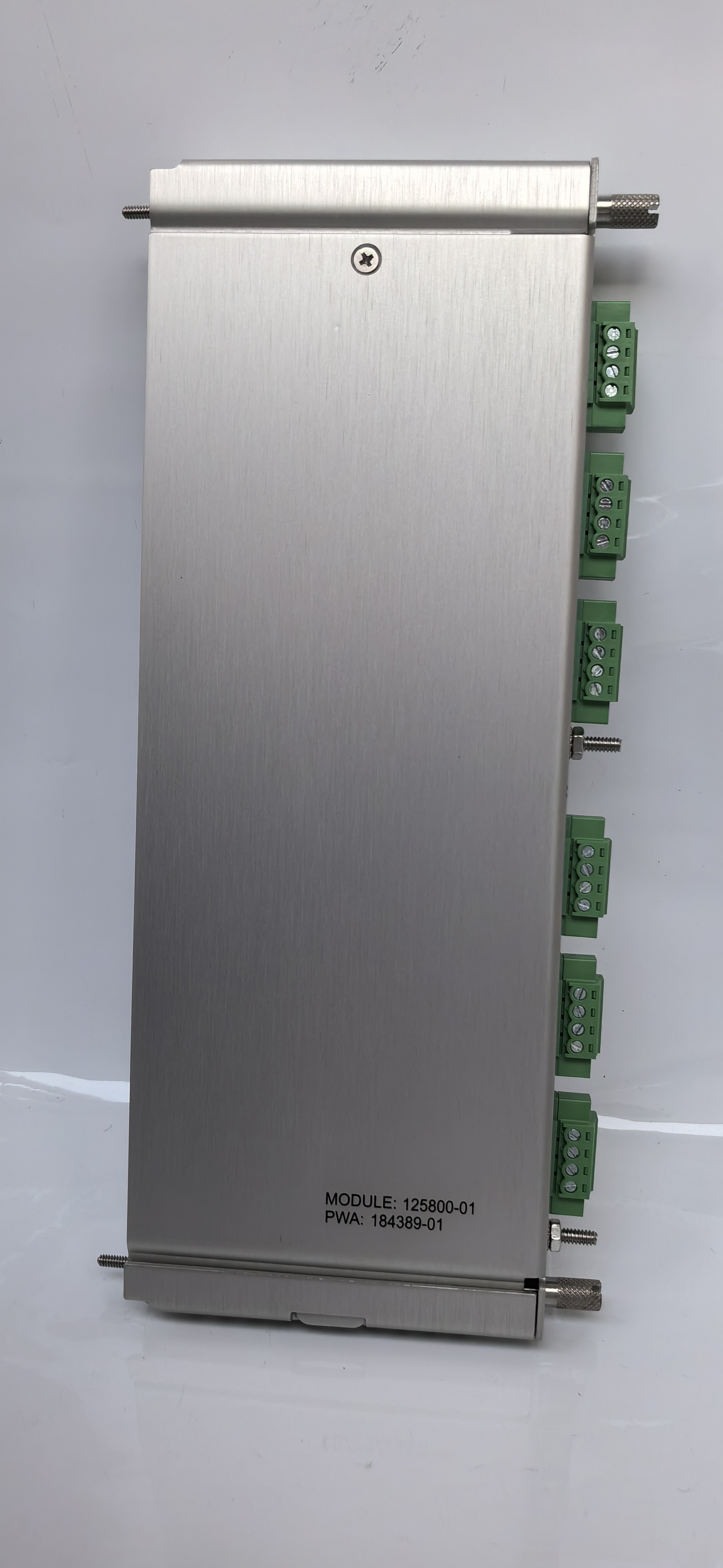

Bently Nevada 3500/25 Keyphasor Module 149369-01 For Vibration Monitoring

Bently Nevada 3500/25 Keyphasor Module 149369-01 For Vibration Monitoring
Bently Nevada 3500/25 Keyphasor Module 149369-01 For Vibration Monitoring Bently Nevada 3500/25 Keyphasor Module 149369-01 For Vibration Monitoring Bently Nevada 3500/25 Keyphasor Module 149369-01 For Vibration Monitoring Bently Nevada 3500/25 Keyphasor Module 149369-01 For Vibration Monitoring

Large Image :  Bently Nevada 3500/25 Keyphasor Module 149369-01 For Vibration Monitoring

Product Details:
Place of Origin: USA
Brand Name: Bently Nevada
Certification: CE
Model Number: 3500/25-01-01-00 149369-01 125800-01
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: 12-16weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

Bently Nevada 3500/25 Keyphasor Module 149369-01 For Vibration Monitoring

Description
Power Consumption: 3.2 Watts Typical Input Impedance: 21.8 K Ω Minimum
Output Impedance: 504 Ω Maximum Buffered Output Impedance. Storage Temperature: -40°C To +85°C (-40°F To +185°F)
Humidity: 95%, Non-condensing Dimensions: 119.9 Mm X 24.4 Mm X 256.5 Mm
Weight: 0.34 Kg (0.76 Lbs.) RoHS: RoHS Directive 2011/65/EU
Highlight:

3500/25 Keyphasor Module

,

Keyphasor Module 149369-01

,

Vibration Monitoring Keyphasor Module

3500/25 Keyphasor Bently Nevada Vibration Analyzer Keyphasor Module 149369-01 125800-01
Technical Specifications
Attribute Value
Power Consumption 3.2 Watts typical
Input Impedance 21.8 k Ω minimum
Output Impedance 504 Ω maximum buffered output impedance
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Humidity 95%, non-condensing
Dimensions 119.9 mm x 24.4 mm x 256.5 mm
Weight 0.34 kg (0.76 lbs.)
RoHS RoHS Directive 2011/65/EU
Product Overview
The 3500/25 Enhanced Keyphasor Module is a half-height, two-channel module used to provide Keyphasor signals to monitor modules in a 3500 rack. The module receives input signals from proximity probes or magnetic pickups and converts them to digital Keyphasor signals that indicate when the Keyphasor mark on the shaft coincides with the transducer.
The 3500 Machinery Protection System can accept up to four Keyphasor signals for normal configuration and up to eight in a paired configuration. This enhanced module offers expanded signal processing capabilities while maintaining complete downward-compatibility with existing Keyphasor modules.
Key Features
  • Half-height, two-channel design
  • Compatible with proximity probes and magnetic pickups
  • Supports up to eight Keyphasor signals in paired configuration
  • Improved signal processing capabilities
  • Fully backward compatible with legacy systems
  • Replaces previous module PWA 125792-01 with updated 149369-01
Ordering Information
3500/25-AA-BB-CC
A: Number of channels
01 - Single half-height 2-channel Keyphasor card (order for 2-channels)
02 - Two half-height 2-channel Keyphasor cards (order for 4-Channels)
B: Type of I/O Module
01 - I/O module with Internal Terminations
02 - I/O module with External Terminations
03 - Internal Barrier I/O with Internal Terminations
04 - Isolated I/O module with Internal Terminations (for Magnetic Pickups)
05 - Isolated I/O module with External Terminations (for Magnetic Pickups)
C: Agency Approval Option
00 - Not required
01 - cNRTLus (Class 1, Div 2)
02 - ATEX/IECEx/CSA (Class 1 Zone 2)
Spare Parts
149369-01 - Enhanced Keyphasor Module
125800-01 - Keyphasor I/O Module (Internal Terminations)
125800-02 - Isolated Keyphasor I/O Module (Internal Terminations)
126648-02 - Isolated Keyphasor I/O Module (External Terminations)
135473-01 - Keyphasor I/O Module (Internal Barriers and Internal Terminations)
04425545 - Grounding Wrist Strap (single use)
00580438 - Connector Header, Internal Termination, 4-Position, Green
166M2391 - Connector Header, Push-in Spring Type
00502133 - Connector Header, Internal Termination, 12-Position, Blue
129770 - Keyphasor Module User Guide
131151-01 - Half-height Blank Front Panel Cover
125388-01 - Half-height Chassis
125565-01 - Card Guide
4300111 - Assembly Screws (Order Qty. 3)
Related Part Numbers
177230-01-01-CN
991-25-50-01-00
330105-02-12-05-02-00
177313-02-02-00
330106-05-30-05-02-00
330105-02-12-05-02-CN
190501-00-00-CN
330106-05-30-05-02-CN
330105-02-12-10-02-00
200151-060-03-00
330106-05-30-10-02-00
330105-02-12-10-02-CN
CB2W100-32
40180-02
330101-00-16-10-02-CN
330130-040-00-00
CB2W100-32
330101-00-25-05-01-CN
330130-040-00-CN
330180-51-CN
330102-00-17-10-02-CN
330130-080-01-00
330180-91-CN
330102-02-12-10-02-00
330130-045-00-CN
330190-085-00-00
330103-00-05-10-01-00
330130-045-01-00
330195-02-12-05-00
Bently Nevada 3500/25 Keyphasor Module 149369-01 For Vibration Monitoring 0 Bently Nevada 3500/25 Keyphasor Module 149369-01 For Vibration Monitoring 1
