P+F KCD2-SCD-Ex1 Current Driver SIL 2 IP20 HART Barrier

P+F KCD2-SCD-Ex1 Current Driver SIL 2 IP20 HART Barrier
P+F KCD2-SCD-Ex1 Current Driver SIL 2 IP20 HART Barrier P+F KCD2-SCD-Ex1 Current Driver SIL 2 IP20 HART Barrier

Large Image :  P+F KCD2-SCD-Ex1 Current Driver SIL 2 IP20 HART Barrier

Product Details:
Place of Origin: Germany
Brand Name: P+F
Certification: CESI 19 ATEX 021 X
Model Number: KCD2-SCD-Ex1
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

P+F KCD2-SCD-Ex1 Current Driver SIL 2 IP20 HART Barrier

Description
Signal Type: Analog Output Safety Integrity Level (SIL): SIL 2
Systematic Capability (SC): SC 3 Frequency Range: Field Side Into The Control Side: Bandwidth With 0.5 Vpp Signal 0 ... 3 KHz (-3 DB) Control Side Into The Field Side: Bandwidth With 0.5 Vpp Signal 0 ... 3 KHz (-3 DB)
Protection Against Electrical Shock: UL 61010-1:2019 Ambient Temperature: -40 ... 70 °C (-40 ... 158 °F)
Degree Of Protection: IP20 Dimensions: 12.5 X 124 X 114 Mm (0.5 X 4.9 X 4.5 Inch) (W X H X D) , Housing Type A2
Highlight:

IP20 P+F Current Driver

,

SMART Current Driver

,

KCD2-SCD-Ex1

IP20S P+F MART Current Driver KCD2-SCD-Ex1
Product Overview

The KCD2-SCD-Ex1 isolated barrier is designed for intrinsic safety applications. It repeats input signals from control systems to drive HART I/P converters, electrical valves, and positioners in hazardous areas. Digital signals are superimposed on analog values and transferred bi-directionally between field and control sides.

Key Features
  • Analog output signal type with SIL 2 safety integrity level
  • Bi-directional HART communication capability
  • Wide operating temperature range (-40 to 70°C)
  • Compact DIN rail mounting design (12.5 x 124 x 114 mm)
  • Open circuit detection with high impedance monitoring
  • Integrated test sockets for HART communicators
  • Multiple international certifications (ATEX, IECEx, FM, UL)
Technical Specifications
General Specifications
Signal Type
Analog output
Safety Integrity Level (SIL)
SIL 2
Systematic Capability (SC)
SC 3
Electrical Characteristics
Input Signal
4...20 mA (limited to approx. 26 mA)
Output Current
4...20 mA
Load
0...650 Ω
Frequency Range
0...3 kHz (-3 dB) both directions
Environmental Specifications
Ambient Temperature
-40...70°C (-40...158°F)
Degree of Protection
IP20
Certifications and Approvals
  • ATEX Certified: II (1)G [Ex ia Ga] IIC, II (1)D [Ex ia Da] IIIC, I (M1) [Ex ia Ma] I
  • IECEx Certified: [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
  • FM Approved: FM 18 CA 0116 X, FM 19 US 0117 X
  • UL Listed: E106378
  • Compliant with EN 61326-1:2013 (EMC), UL 61010-1:2019
Physical Specifications
Dimensions (W x H x D) 12.5 x 124 x 114 mm (0.5 x 4.9 x 4.5 inch)
Weight Approx. 100 g
Mounting 35 mm DIN rail (EN 60715:2001)
Housing Type A2
Related Models
KFD0-CS-Ex1.51P
KFD0-CS-Ex2.50P
KFD0-CS-Ex2.51P
KFD0-RO-Ex2
KFD0-SCS-Ex1.55
KFD0-SD2-Ex2.1045
KFD0-SD2-Ex2.1245
KFD0-TR-Ex1

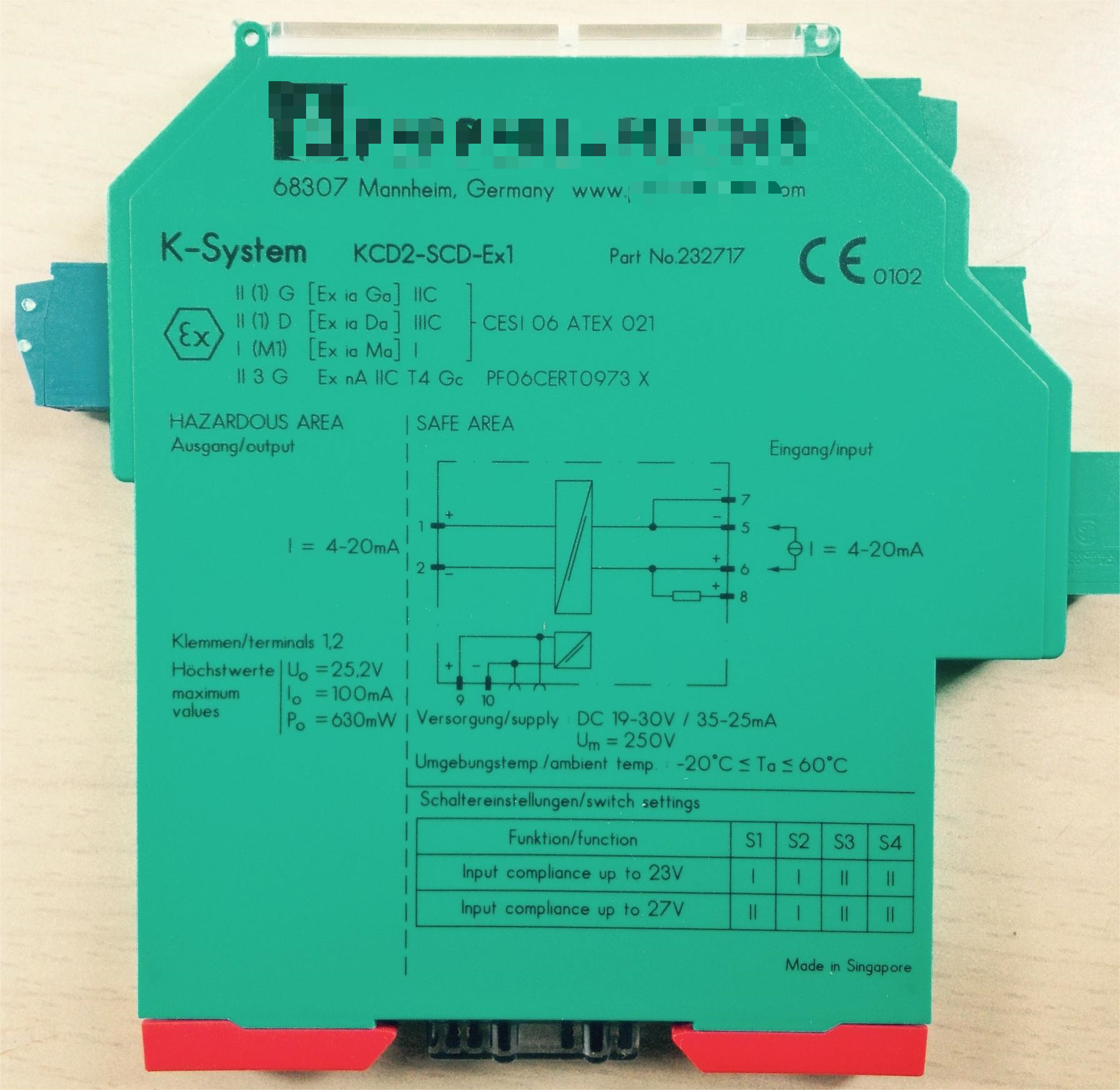

P+F KCD2-SCD-Ex1 Current Driver SIL 2 IP20 HART Barrier 0

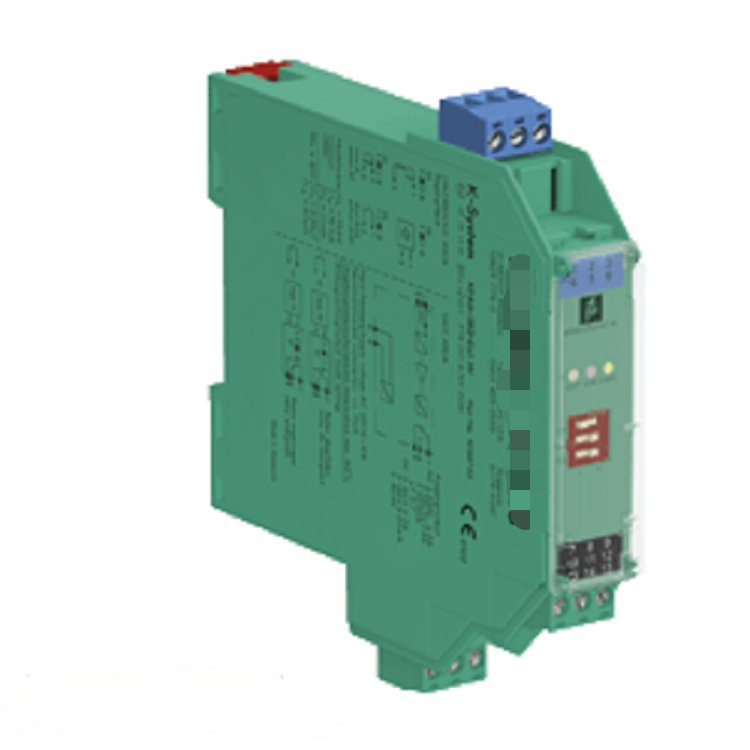

P+F KCD2-SCD-Ex1 Current Driver SIL 2 IP20 HART Barrier 1
