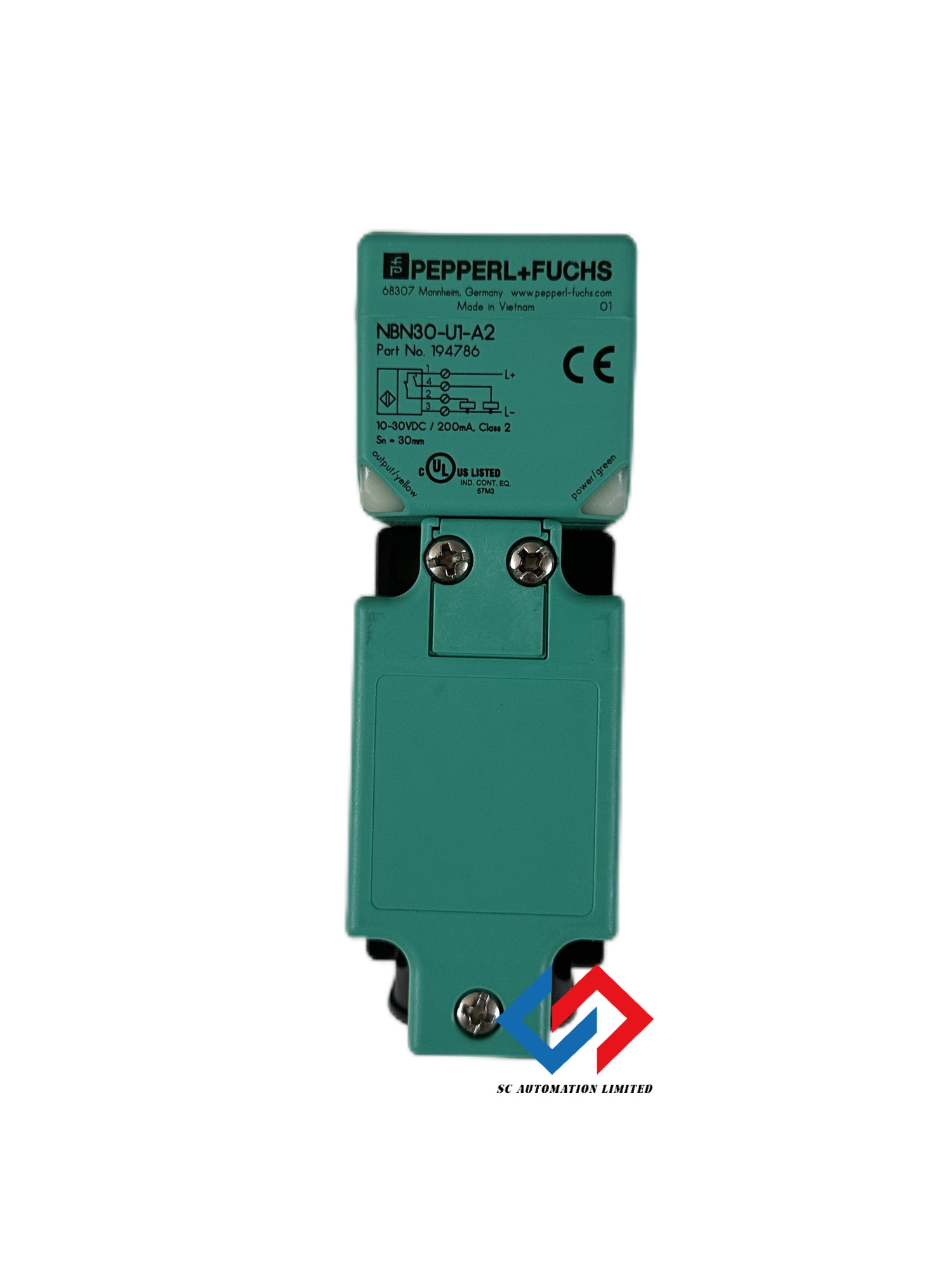

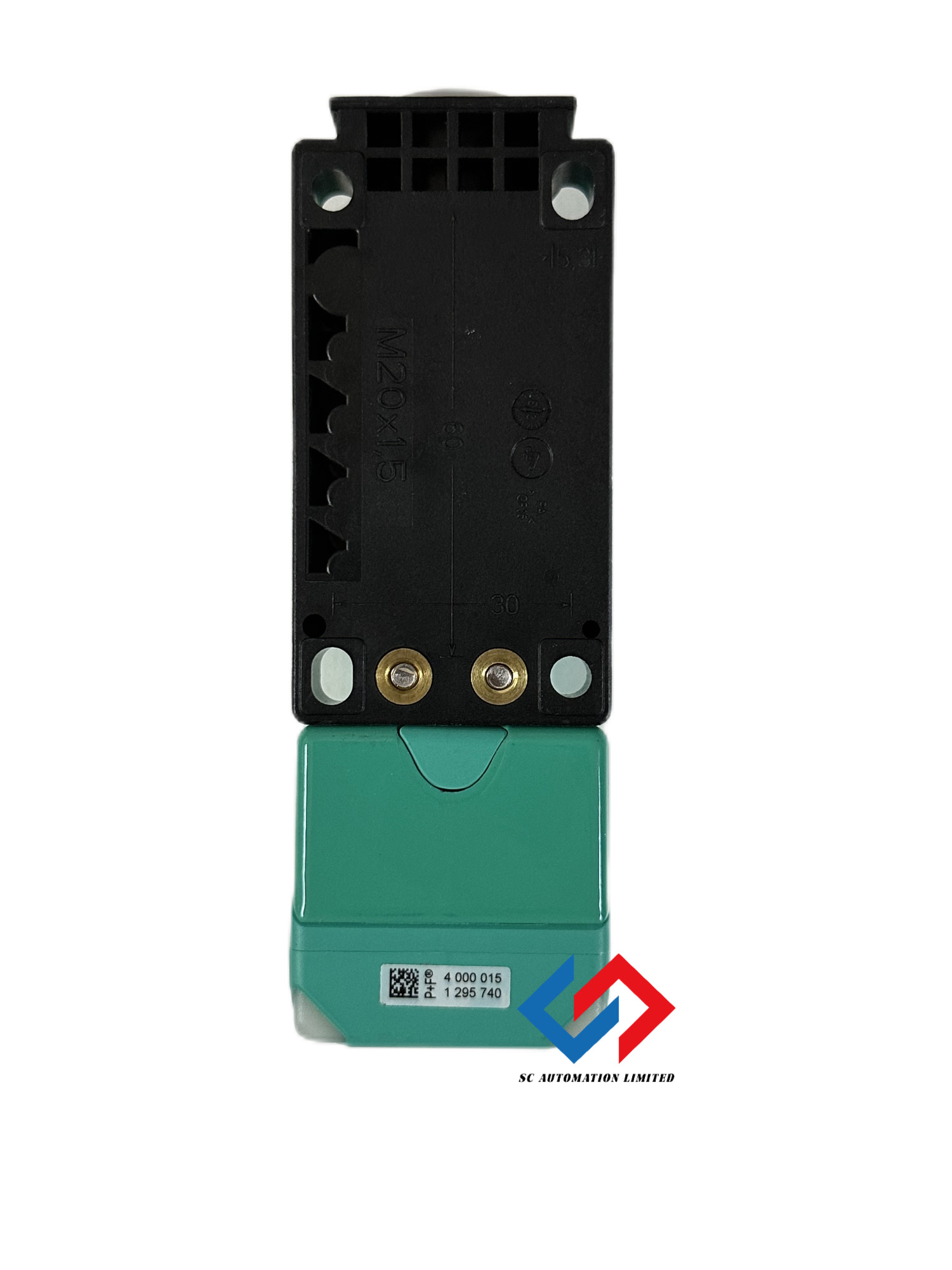

P+F NBN30-U1-A2 Inductive Sensor With PNP Output 0-200mA

P+F NBN30-U1-A2 Inductive Sensor With PNP Output 0-200mA
P+F NBN30-U1-A2 Inductive Sensor With PNP Output 0-200mA P+F NBN30-U1-A2 Inductive Sensor With PNP Output 0-200mA P+F NBN30-U1-A2 Inductive Sensor With PNP Output 0-200mA

Large Image :  P+F NBN30-U1-A2 Inductive Sensor With PNP Output 0-200mA

Product Details:
Place of Origin: Vietnam
Brand Name: P+F
Certification: CE
Model Number: NBN30-U1-A2
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable

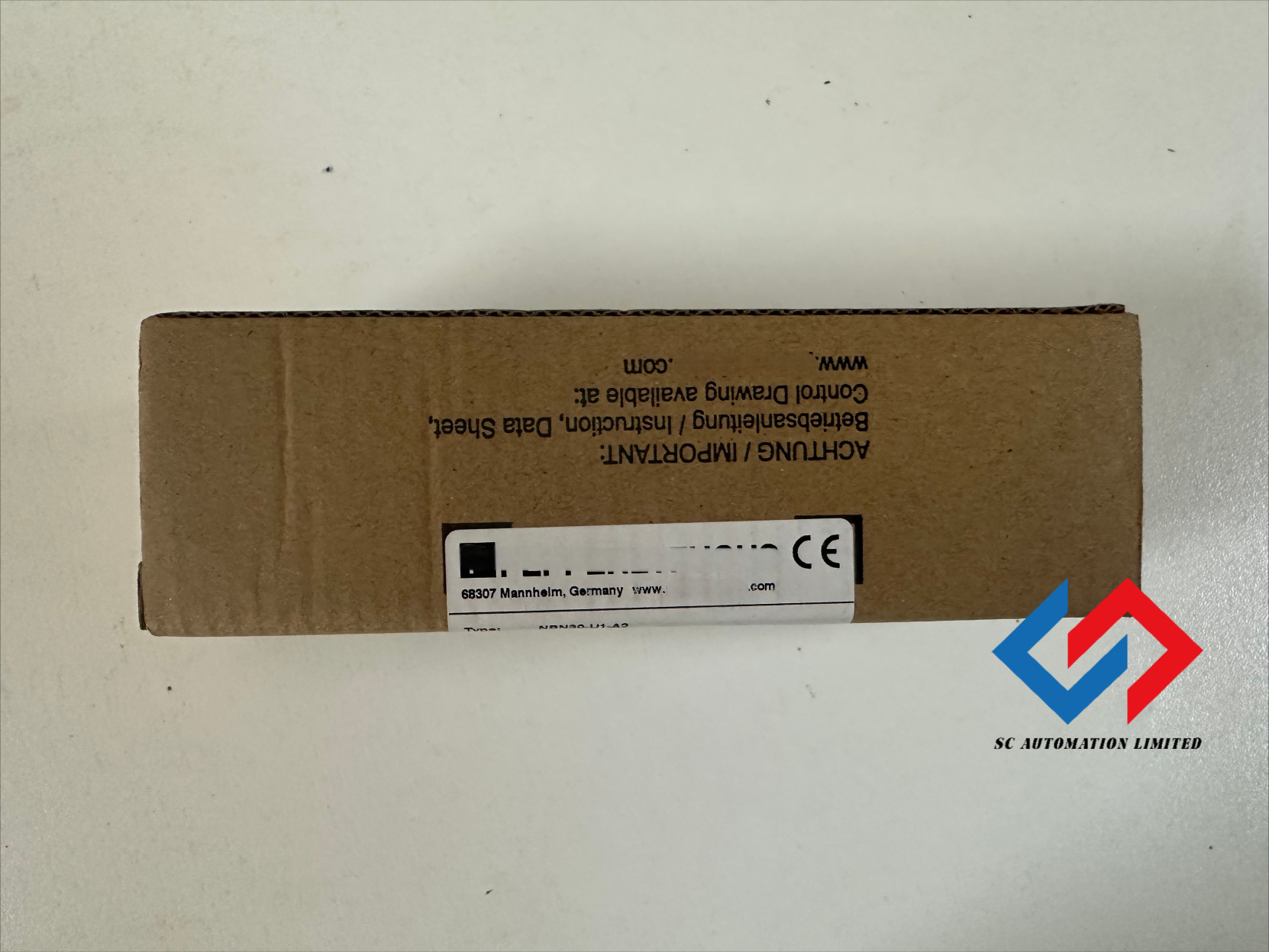

Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

P+F NBN30-U1-A2 Inductive Sensor With PNP Output 0-200mA

Description
Switching Function: Complementary Output Type: PNP
Output Polarity: DC Operating Current: 0 ... 200 MA
Mass: 225 G Dimensions: 40mm*40mm*118mm
Highlight:

P+F Inductive Sensor

,

P+F NBN30-U1-A2

,

PNP Output Inductive sensor

P+F Inductive sensor NBN30-U1-A2 with PNP Output Type and Operating Current 0 ... 200 mA
Key Specifications
Attribute Value
Switching function complementary
Output type PNP
Output polarity DC
Operating current 0 ... 200 mA
Mass 225 g
Dimensions 40mm × 40mm × 118mm
Technical Specifications
General specifications
Switching function   complementary
Output type   PNP
Rated operating distance sn 30 mm
Installation   non-flush
Output polarity   DC
Assured operating distance sa 0 ... 24.3 mm
Reduction factors   rAl: 0.33, rCu: 0.31, r304: 0.74, rBrass: 0.38
Output type   4-wire
Nominal ratings
Operating voltage UB 10 ... 30 V
Switching frequency f 0 ... 230 Hz
Hysteresis H typ. 5 %
Protection   Reverse polarity protected, Short-circuit protection (pulsing)
Voltage drop Ud ≤ 2 V
Operating current IL 0 ... 200 mA
Off-state current Ir 0 ... 0.5 mA
No-load supply current I0 ≤ 20 mA
Time delay before availability tv 80 ms
Indicators   Operating voltage (LED, green), Switching state (LED, yellow)
Functional safety related parameters
MTTFd   1057 a
Mission Time (TM)   20 a
Diagnostic Coverage (DC)   0 %
Compliance with standards and directives
Standards   EN IEC 60947-5-2
Approvals and certificates
UL approval   cULus Listed, General Purpose
CCC approval   CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature   -25 ... 85 °C (-13 ... 185 °F)
Mechanical specifications
Connection type   screw terminals
Connection information   A maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 %
Core cross section   up to 2.5 mm²
Minimum core cross-section   without wire end ferrules 0.5 mm², with connector sleeves 0.34 mm²
Maximum core cross-section   without wire end ferrules 2.5 mm², with connector sleeves 1.5 mm²
Housing material   PA/metal with epoxy powder coating
Sensing face   PA
Housing base   plastic
Degree of protection   IP68 / IP69K
Mass   225 g
Dimensions   Height: 40 mm, Width: 40 mm, Length: 118 mm
Note   Tightening torque: 1.8 Nm (housing)
