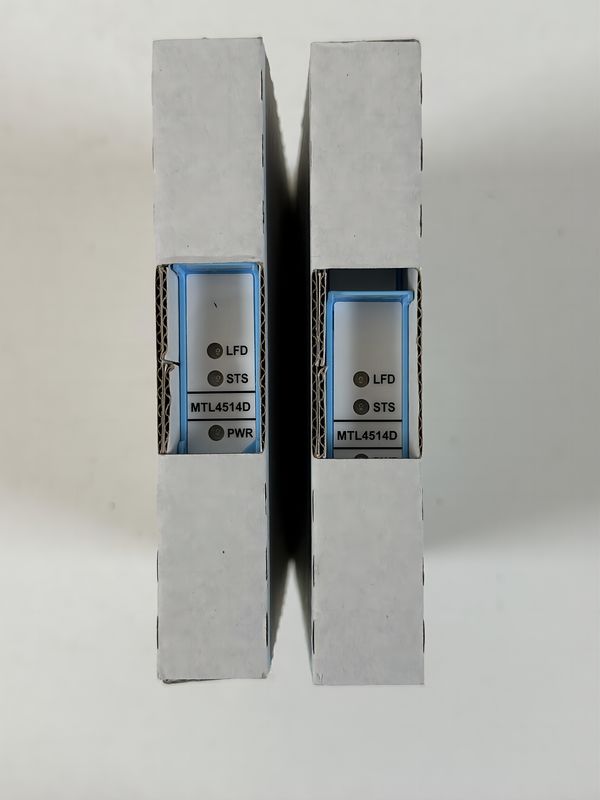

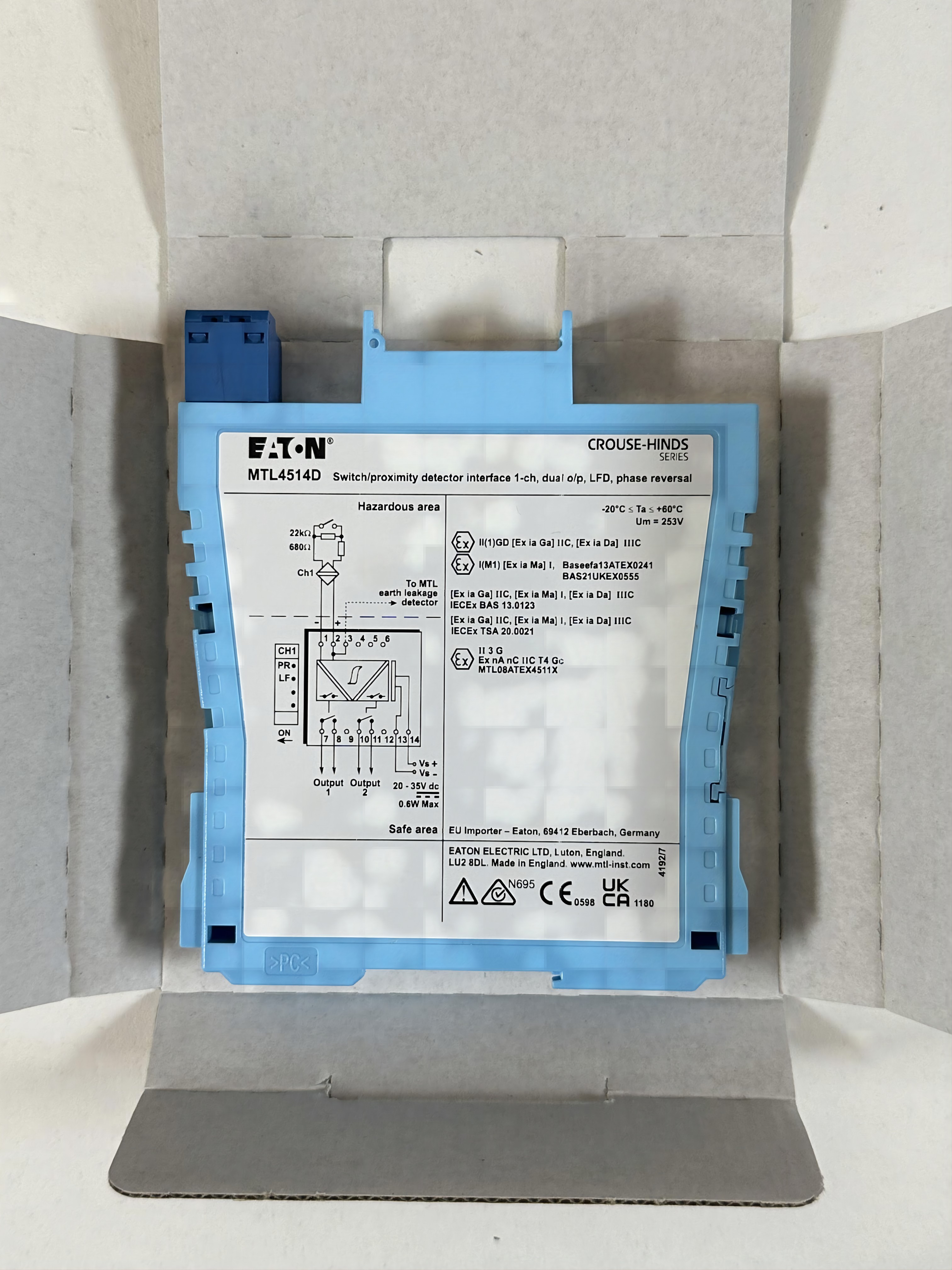

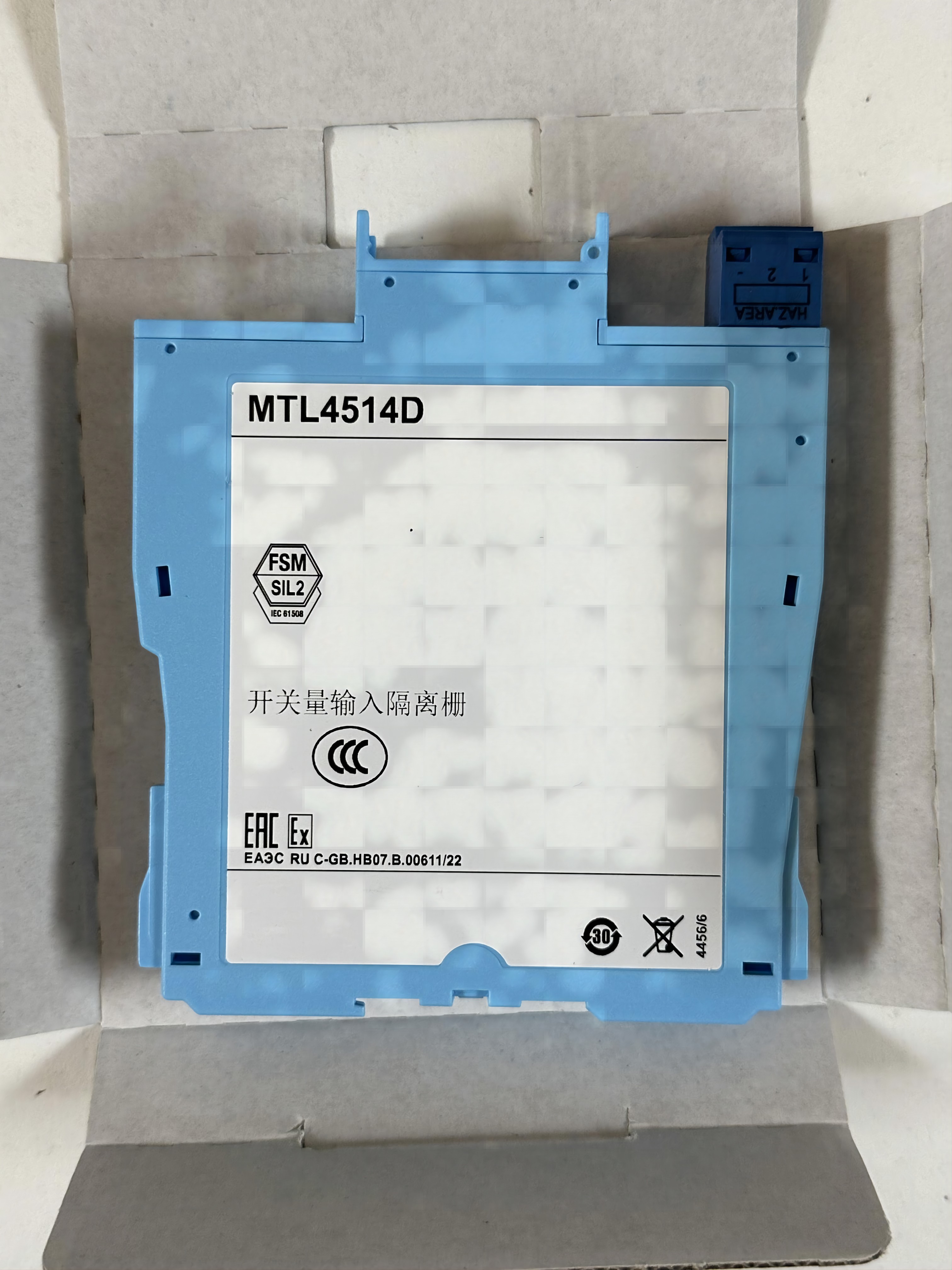

MTL4514D MTL5514D Hazardous Area Switch Proximity Detector Interface

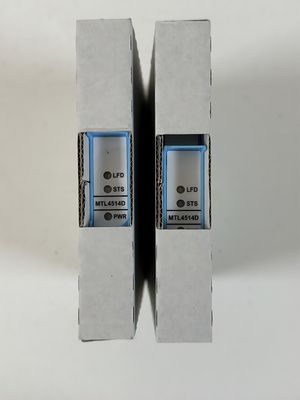

Large Image : MTL4514D MTL5514D Hazardous Area Switch Proximity Detector Interface

Product Details:

Place of Origin:	England
Brand Name:	MTL
Certification:	CE
Model Number:	MTL4514

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

MTL4514D MTL5514D Hazardous Area Switch Proximity Detector Interface

Description

Number Of Channels:	One	Location Of Switch:	Zone 0, IIC, T6 Hazardous Area Div.1, Group A, Hazardous Location
Location Of Proximity Detector:	Zone 0, IIC, T4–6 Hazardous Area, If Suitably Certified Div.1, Group A, Hazardous Location	Hazardous–area Inputs:	Inputs Conforming To BS EN60947–5–6:2001 Standards For Proximity Detectors (NAMUR)
Voltage Applied To Sensor:	7 To 9V Dc From 1kΩ ±10%	Safe-area Output:	Two, Single Pole Relays With Normally-open Contact
Highlight:	MTL5514D Switch/Proximity Detector Interface , MTL4514D Switch/Proximity Detector Interface , Harsh Environments Switch/Proximity Detector Interface

MTL4514D – MTL5514D Switch/Proximity Detector Interface for Harsh Environments

Product Specifications

Attribute	Value
Number of channels	One
Location of switch	Zone 0, IIC, T6 hazardous area Div.1, Group A, hazardous location
Location of proximity detector	Zone 0, IIC, T4–6 hazardous area, if suitably certified Div.1, Group A, hazardous location
Hazardous–area inputs	Inputs conforming to BS EN60947–5–6:2001 standards for proximity detectors (NAMUR)
Voltage applied to sensor	7 to 9V dc from 1kΩ ±10%
Safe-area output	Two, single pole relays with normally-open contact

Product Description

The MTLx514D enables two safe-area loads to be controlled, through relays, by a proximity detector or switch located in a hazardous area. When selected, open or short circuit conditions in the field wiring are detected by the line fault detect (LFD) facility and indicated on the top of the module. Switches are provided to select phase reversal and to enable the line fault detection.

Relay Characteristics

Specification	MTL4514D	MTL5514D
Response time	10ms maximum	10ms maximum
Contact rating (Safe Area)	10W, 0.5A, 35V dc	250V ac, 2A, cosØ >0.7, 40V dc, 2A, resistive load
Contact rating (Zone 2)	10W, 0.5A, 35V dc	35V, 2A, 100VA
