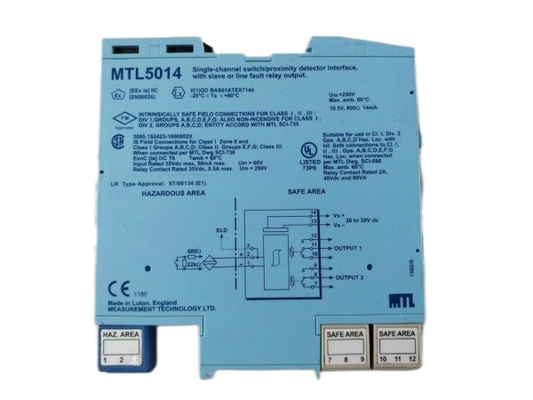

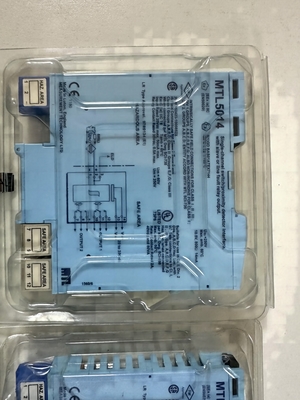

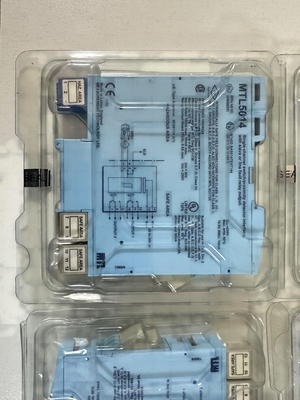

MTL5014 NAMUR Proximity Detector Interface for Hazardous Areas

Large Image : MTL5014 NAMUR Proximity Detector Interface for Hazardous Areas

Product Details:

Place of Origin:	England
Brand Name:	MTL
Certification:	CE
Model Number:	MTL5014

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

MTL5014 NAMUR Proximity Detector Interface for Hazardous Areas

Description

Number Of Channels:	One	Location Of Switches:	Zone 0, IIC, T6 Hazardous Area Div. 1, Group A Hazardous Location
Location Of Proximity Detectors:	Zone 0, IIC, T4–6 Hazardous Area If Suitably Certified Div. 1, Group A Hazardous Location	Safe-area Output:	Two Relays With Changeover Contacts
Hazardous-area Input:	One Input Conforming To NAMUR/DIN 19234 Standards For Proximity Detectors	One Input Conforming To NAMUR/DIN 19234 Standards For Proximity Detectors:	7.0 To 9.0V From 1kΩ ±10%
Highlight:	Hazardous Area Switch/Proximity Detector Interface , NAMUR Switch/Proximity Detector Interface , DIN 19234 Switch/Proximity Detector Interface

MTL5014 Switch/Proximity Detector Interface NAMUR/DIN 19234 Standards for Hazardous Area

Product Attributes

Attribute	Value
Number of channels	One
Location of switches	Zone 0, IIC, T6 hazardous area Div. 1, Group A hazardous location
Location of proximity detectors	Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A hazardous location
Safe-area output	Two relays with changeover contacts
Hazardous-area input	One input conforming to NAMUR/DIN 19234 standards for proximity detectors
Voltage specification	7.0 to 9.0V from 1kΩ ±10%

Product Description

The MTL5014 enables two safe-area loads to be controlled by a single switch or proximity detector located in the hazardous area. The safe-area interface has two changeover relays: output 1 and output 2. The output 1 relay reflects the status of the input and may be configured to operate in reverse phase. The output 2 relay may be configured either to repeat (slave) the output 1 relay, or to act as a line integrity monitor. A selectable line-fault-detect (LFD) facility enables an open- or short- circuit fault to be detected in the field wiring.
