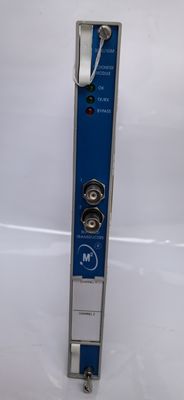

2 Channel Bently Nevada 3500/50M Tachometer Module 3500/50-01-00

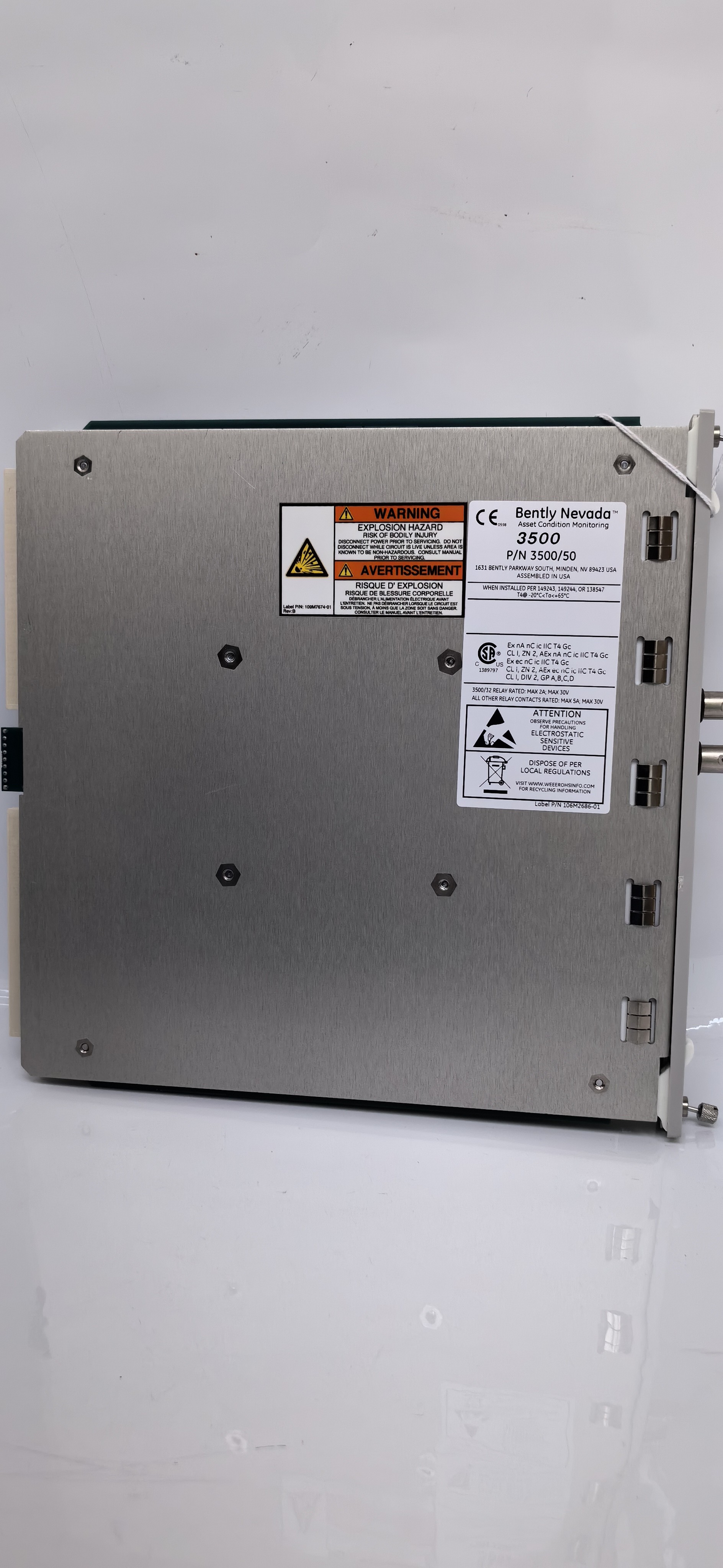

Large Image : 2 Channel Bently Nevada 3500/50M Tachometer Module 3500/50-01-00

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CE
Model Number:	3500/50-01-00 288062-02 133442-01

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-16weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

2 Channel Bently Nevada 3500/50M Tachometer Module 3500/50-01-00

Description

Signal:	Each 3500/50M Tachometer Module Accepts Up To Two Transducer Signals From Proximity Probe Transducers Or Magnetic Pickups.	Input Signal Range:	+10.0 V To -24.0 V
Input Impedance:	20 K Ω (standard) 40 K Ω (TMR) 7.15 K Ω (Internal Barrier)	Power Consumption:	5.8 Watts, Typical
Dimensions:	241.3 Mm X 24.4 Mm X 99.1 Mm	Weight:	0.20 Kg (0.44 Lb)
Monitor Module:	1 Full-height Front Slot	I/O Modules:	1 Full-height Rear Slot
Highlight:	3500/50M Tachometer Module , Tachometer Module 3500/50-01-00 , 2 Channel Tachometer Module

Bently Nevada 3500/50M Tachometer Module 3500/50-01-00 288062-02 133442-01

Product Overview

The 3500/50M Tachometer Module is a 2-channel module that accepts input from proximity probes or magnetic pickups to determine shaft rotative speed, rotor acceleration, or rotor direction. The module compares these measurements against user-programmable alarm setpoints and generates alarms when the setpoints are violated.

Key Features

Accepts up to two transducer signals from proximity probe transducers or magnetic pickups
Programmable via 3500 Rack Configuration software
Multiple configuration options including speed monitoring, setpoint alarming, and reverse rotation notification
Can supply conditioned Keyphasor signals to the backplane
Includes peak hold feature for tracking highest speed values

Technical Specifications

Attribute	Value
Signal	Each 3500/50M Tachometer Module accepts up to two transducer signals from proximity probe transducers or magnetic pickups.
Input signal range	+10.0 V to -24.0 V
Input impedance	20 k Ω (standard) 40 k Ω (TMR) 7.15 k Ω (Internal Barrier)
Power consumption	5.8 watts, typical
Dimensions	241.3 mm x 24.4 mm x 99.1 mm
Weight	0.20 kg (0.44 lb)
Monitor Module	1 full-height front slot
I/O Modules	1 full-height rear slot

Configuration Options

Speed Monitoring, Setpoint Alarming and Speed Band Alarming
Speed Monitoring, Setpoint Alarming and Zero Speed Notification
Speed Monitoring, Setpoint Alarming and Rotor Acceleration Alarming
Speed Monitoring, Setpoint Alarming and Reverse Rotation Notification

Ordering Information

3500/50M Tachometer Module 3500/50-AA-BB

I/O Module Type

01	I/O Module with Internal Terminations
02	I/O Module with External Terminations
04	I/O Module with Internal Barriers and Internal Terminations

Hazardous Area Approval Option

00	None
01	cNRTLus (Class 1, Division 2)
02	ATEX/IECEx/CSA (Class 1, Zone 2)

External Termination (ET) Blocks

Part Number	Description
125808-05	Tachometer ET Block Euro Style connectors
128015-05	Tachometer ET Block Terminal Strip connectors
128702-01	Recorder ET Block Euro Style connectors
128710-01	Recorder ET Block Terminal Strip connectors

Spare Parts

Part Number	Description
288062-02	3500/50M Tachometer Module
133442-01	I/O Module with Internal Terminations
136703-01	Discrete Internal Barrier I/O Module with Internal Terminations
133434-01	I/O Module with External Terminations
133450-01	TMR I/O Module with External Terminations
134938	3500/50M Tachometer User Guide
04425545	Grounding Wrist Strap Single use only
00580434	Connector Header Internal Termination 8-position Green
00580436	Connector Header Internal Termination 6-position Green
00502133	Connector Header Internal Termination 12-position Blue
166M2390	Connector Header Push-in-Spring Type (Alternative for PN 00580436)
166M2389	Connector Header Push-in-Spring Type (Alternative for PN 00580434)
